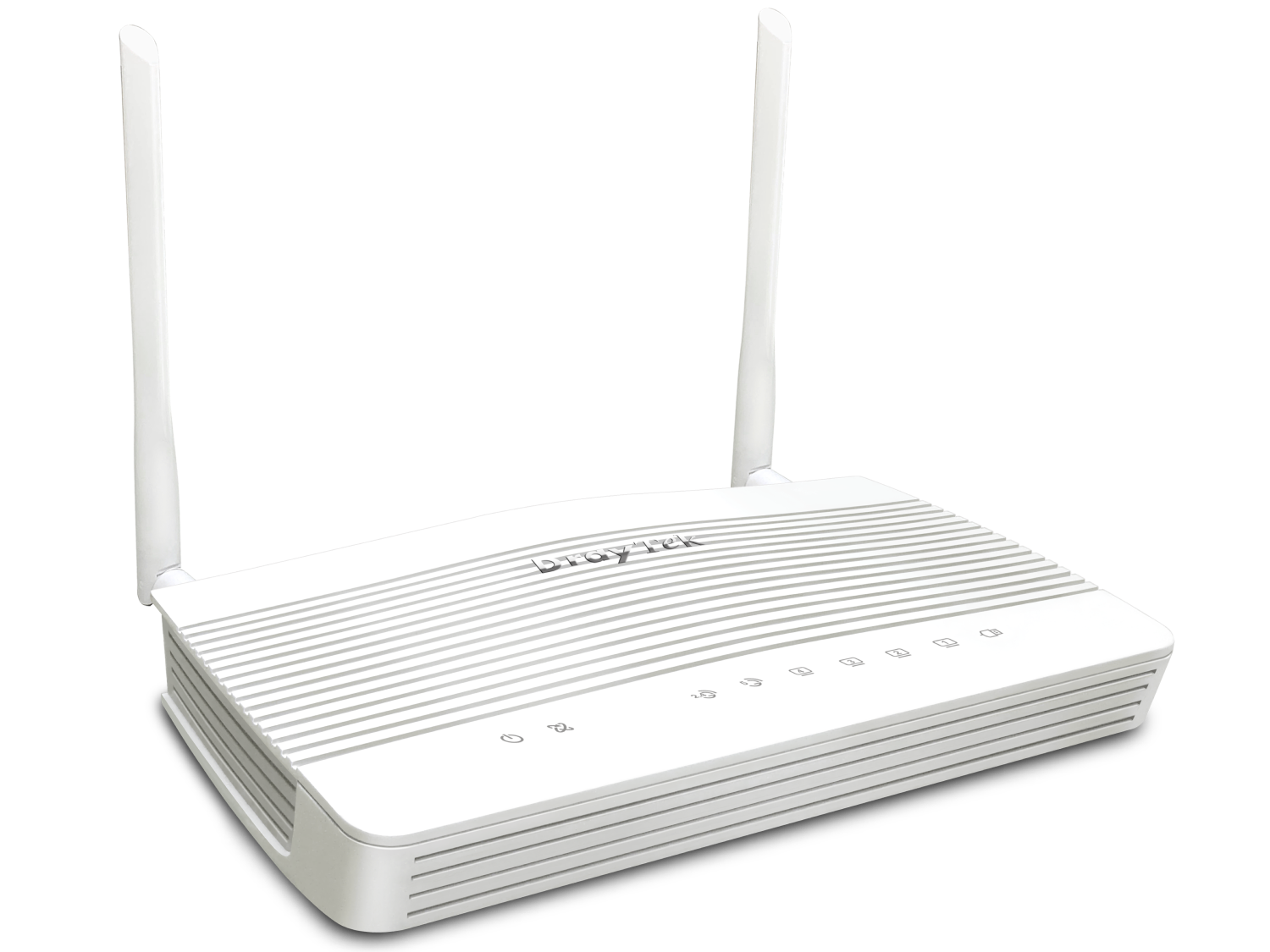

Vigor2767 Series

VDSL2 35b Supervectoring Router

Vigor2767 features a DSL WAN port that support VDSL2 profile 35b and a LAN/WAN switchable port operating at 2.5Gbps. The router is equipped with business-grade features, including URL/IP Reputation, Route Policy, App-based QoS, and more, making it ideal for professional smart homes and SOHO users. The series includes models with built-in 802.11ax Wi-Fi, offering wireless link rate up to 3Gbps for improved wireless connectivity.

2.5 GbE

1x 2.5G LAN/WAN Switchable

VDSL2 35b

Download speed up to 300 Mbps

16 VPN

IPsec throughput up to 300 Mbps

AX 3000*

Delivers link rate up to 3 Gbps

*ax model only

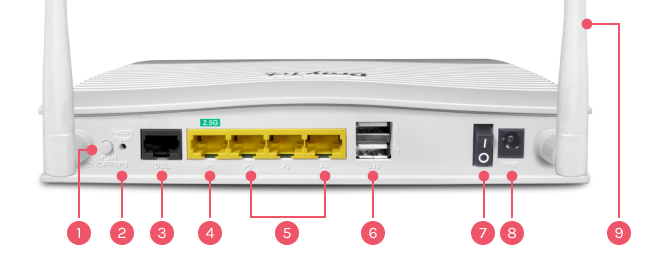

Interface

(ax model)

1WLAN/WPS Button (ax model)

2Reset Button

3Fixed WAN Port: 1 x RJ-11 (For VDSL 35b/ADSL2+ WAN)

4LAN/WAN Switchable Port: 1x 2.5GbE RJ-45

5Fixed LAN Port: 3x GbE RJ-45

62x USB 2.0

7Power On/Off Switch

8Power Input

9Wi-Fi Antenna (ax model)

Key Features

2.5GbE

Provides higher performance to Wi-Fi 6 AP and other Ethernet devices.

35b Supervectoring Modem

Integrated VDSL modem, supporting VDSL2 profile 35b supervectoring.

Bandwidth Management

Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.

DrayDDNS

The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more

VPN (Virtual Private Network)

Build a secure and private tunnel from the LAN of Vigor2767 Series to the remote offices and teleworkers over the Internet. Learn more

EasyVPN

Secure VPN in Seconds: No Keys, No Configs, Just Login.

Port Knocking

Add a stealth security layer to protect ports from unauthorized access.

Firewall & Content Filter

Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.

URL/IP Reputation

Improve network security by classifying URLs and IPs to control web access and protect against online threats. Learn more

IAM

A solution that manages digital identities, authentication, and access control to ensure the right users or groups have appropriate access to critical resources. Learn more

Hotspot Web Portal

Market your business and communicate with the guests while offering hospitality WLAN. Learn more

Wi-Fi 6 (ax model only)

Feature OFDMA and MU-MIMO technology to improve Wi-Fi efficiency and deliver higher wireless speed.

Mesh (Wireless model only)

Easily link to other VigorAP to expand the wireless network. Learn more

Virtual AP/Switch controller

All-in-one management platform for Vigor2767 Series to maintain and monitor the VigorAPs and VigorSwitches.

Threat Protection

Detect and mitigate cyber threats with cloud-assisted threat intelligence, helping protect users, devices, and networks from malicious activities. Learn more

Faster Wired Connections

4K video streaming
online gaming
large file transfers
Network-Attached Storage (NAS) devices etc

Beyond Gigabit

Up to 2.5Gbps internet speed enable the users to fully utilize the available bandwidth

NAT & Routing Performance

With hardware acceleration, Vigor2767 Series delivers up to 2.3 Gbps aggregate NAT throughput, meeting the demands of business-critical applications while keeping VoIP traffic as the top priority. Additionally, a single 1GbE client can reach up to 950 Mbps, and VDSL2 35b provides up to 300 Mbps to LAN.

Effortless Secure Access with EasyVPN

Traditional VPN setup can be complex, with protocol choices and manual configuration. Vigor2767 Series supports IPsec, WireGuard, and OpenVPN, while EasyVPN streamlines Teleworker VPN, giving remote users secure access with a simple profile import.

With EasyVPN, users can establish secure connections without the hassle of:

Generating WireGuard keys
Importing OpenVPN configuration files
Uploading certificates

By automating these steps, EasyVPN ensures a fast, secure, and user-friendly VPN experience for everyone.

Stealth Security Protection with Port Knocking

DrayTek’s Port Knocking technology provides an advanced stealth security layer by keeping critical network services invisible to unauthorized users. Instead of exposing management ports or VPN services to the public internet, Port Knocking requires a predefined “knock” sequence before granting access, ensuring that only trusted users can find and use these services.

By integrating three key functions, Port Knocking delivers unmatched protection against port scanning, brute-force attacks, and unauthorized access

Port Redirection

Hide your real service ports from the public internet.
Redirect unauthorized requests to non-existent services, preventing detection.

Router Management Access

Allow router management only through a secure internal server or after successful knocking.
Eliminate exposure of the management interface to the open internet.

VPN Service Control (WAN Binding)

Keep VPN services invisible and inaccessible until the correct knock sequence is received.
Bind VPN availability to specific WAN interfaces and authorized IP addresses.

How It Works

In normal state, all targeted ports remain closed and undetectable.
After the correct knock sequence, selected ports open temporarily for authorized access.
Once the time window expires, services return to hidden mode automatically.

With DrayTek Port Knocking, your network operates in stealth mode, invisible to attackers, yet instantly accessible to authorized administrators and remote users. This makes it an ideal solution for organizations demanding high security without sacrificing accessibility.

Vigor2767 Series with Wi-Fi 6 capacity (ax model)

Vigor2767 Series is a dual-band Wi-Fi router that provides 160MHz bandwidth and 1024-QAM to greatly increase the speed of wireless connection. The theoretically speed is up to 3000Mbps, of which 574Mbps is in the 2.4GHz band and 2402Mbps in the 5GHz band. Which is 2.5 times faster than an 802.11ac 2x2 dual-band router.

OFDMA (Orthogonal Frequency Division Multiple Access) is a key characteristic of the Wi-Fi 6 certification program. Included in the Wi-Fi 6 standard, OFDMA relies on efficient scheduling techniques to function effectively in congested and complex network environments. As Wi-Fi 6 gains traction among manufacturers and the broader industry, it becomes crucial to analyze and document the potential benefits of successful OFDMA implementation and the ability to measure its impact.

OFDM

OFDMA

MU-MIMO is similar to multiple trucks serving users simultaneously. It increases capacity and results in higher speed per users.

BSS Coloring is a technique used to improve co-existence of overlapping BSSs and to allow spatial reuse within one channel .Simply say BSS coloring helps in mitigating problem of co-channel interference found in legacy Wi-Fi networks.

TWT (Target wake time ) ensures that end devices spend more time in standby while sending and receiving data more economically. This reduces energy consumption and increases overall efficiency within the home network. It allows an AP to manage activity in the Wi-Fi network, in order to minimize medium contention between Stations (STAs), and to reduce the required amount of time that an STA in the power-save mode needs to be awake.

WPA3 (Wi-Fi Protected Access 3) enhances the security of Wi-Fi networks by addressing vulnerabilities in previous standards (like WPA2) and introducing new features to protect modern wireless communications better. WPA3 was introduced in 2018 to provide stronger authentication, better encryption, and improved defenses against attacks such as brute-force password guessing and man-in-the-middle exploits.

DrayTek's Wi-Fi 6 encryption:

WEP (64 / 128-bit)
WPA / WPA2 / WPA3 / OWE

And you may check below comparison table to see WPA3's strength is obviously an surplus development in WLAN security design.

	WEP	WPA	WPA2	WPA3
Encryption	RC4	TKIP / RC4	AES-CCMP	AES-CCMP / AES-GCMP
Session Key	64/128 bit	128 bit	128 bit	128/256 bit
Authentication	Open system, shared key	Pre-shared key	Pre-shared key	AES-CCMP / AES-GCMP
Level of Security	Very low	Low	Moderate	High

URL Reputation

URL Reputation is a cloud-based technology to provide Threat Intelligence Service. This service adds an extra layer of security protection to LAN client for their online activities.

There are 82 categories in total, 10 of which are security-focused, providing comprehensive and up-to-date protection to your home network or office network.

The various categories cover network security, including malware, spyware, adware, parental control for child protection, business, social networking, and more to ensure a safe online environment while also boosting employee productivity and can reach efficient bandwidth management.

IP Reputation

Every communication over the internet involves IP addresses-source and destination. Cybercriminals often leverage known malicious IP addresses to carry out attacks using techniques like:

Botnets
TOR nodes and anonymous proxies
Command-and-control (C2) servers
Phishing servers
DDoS attacks

Blocking communication with these harmful IPs is essential, but it requires dynamic, predictive intelligence-a challenge that static blocklists cannot meet. The IP Reputation Service solves this by providing real-time scoring and classification of IP addresses, enabling automatic blocking of:

High-risk traffic
Suspicious proxies
Malware distributors
IPs linked to recent malicious behavior

The system evaluates IPs across multiple criteria, including infection history, protocol usage, and attack frequency. Each IP is given a reputation score, which determines whether it should be trusted, monitored, or blocked outright.

IAM Identity and Access Management

Vigor2767 Series with the new DrayOS 5 is Zero Trust ready!

IAM (Identity and Access Management) is a framework of policies and processes that ensure the right users or groups have appropriate access to critical resources by managing digital identities, authentication, and access control.

It encompasses processes for identifying, authenticating, and authorizing users or groups to access systems, applications, and data. By assigning specific roles to users and ensuring they have the appropriate level of access to corporate resources and networks, IAM enhances both security management and the user experience.

IAM provides a set of security management tools for Vigor Routers, which is Zero Trust Ready. This solution allows you to grant and categorize user privileges, create and manage access policies, and define large-scale group policies that integrate multiple filtering rules and traffic shaping settings. DrayTek's IAM plays an important role in your cloud security strategy.

Users & Groups

User account > user groups makes it easy to control and manage accounts in a group level
Configure external authentication server
Enable user and MFA protection

Access Policies

System administrators can create access policies on the local users in this tab The access policies can be created according to

MAC address filter list
The allowed /blocked user list
The login sessions lifetime

Combine these access policies can create a robust security framework for your system.

Group Policies

Setup group policies with predefined local resources like employees, workstations, network printers ,and local servers. Customize firewall policies and traffic shaping policies to enhance network security and optimize traffic flow.

Conditional Access Policy

Conditional access policies can require users to provide multiple forms of authentication before they are granted access to a resource.

Specify a time period for user to re-authenticate
Restrict access to specific source IP address or ranges of IP addresses
Specify VLAN-based access controls in your conditional policies
Set up time schedules when user are allowed to log-in

Resources

Record local resources’ IP addresses and Mac addresses under Resources tab. For examples, Workstations, Net printers, PBX systems, NVR systems and servers.

Hotspot Web Portal

DrayTek’s Hotspot Web Portal is a customizable Wi-Fi login page with multiple login options like username/password, social media, and vouchers. It includes features like quotation management, Wi-Fi marketing for promotions, and branding options. Administrators can control access, set bandwidth limits, and monitor usage.

Account Status

The account status feature includes brute force protection, which logs the attacking IP address, the targeted username/profile, and the type of service under attack.

It also tracks the protection duration, recording the time from when the blocking begins to when it ends, along with the total number of hits. Additionally, it allows you to manually unblock access in case of an incorrect restriction.

Backup and Restore

You can backup or restore any of your settings such as Users and Groups, Access and Group Policies and so on. Of course, you can add in Password protection to well save them before you take action.

Seamless Wi-Fi Roaming

Fast & Smooth Handover

Switch between access points seamlessly with intelligent roaming support.
Supports Over-the-DS (via wired backbone) and Over-the-Air handoffs for reliable connectivity during video calls, voice chats, and real-time applications.

Smarter Assisted Roaming

Signal thresholds and AP steering help devices move to stronger APs and balance network loads.
Enjoy stable performance across all devices, everywhere.

Always Optimized for Business

From offices to campuses, seamless roaming ensures uninterrupted mobility.
Reliable coverage built for the demands of modern workplaces.

Mesh

You can connect 7 APs, and form the wireless Group within the same network which creates MESH links automatically based on the optimum algorism among the root and node APs.

Management Solution

Virtual Controller

On-Device Network Management with DrayTek Virtual Controller

DrayTek's Virtual Controller is an on-device management platform built into supported routers and firewalls. It enables centralized control without cloud dependency - reducing data exposure risks and enhancing network privacy.

Wireless Management

Mesh Controller: Easily build and manage wireless mesh networks, with auto-routing and self-healing capabilities.
AP Management (APM): Automatically discover, configure, and monitor connected VigorAPs - ideal for deploying multiple APs with unified settings.

Switch Management

Central Switch Manager (SWM): Detect and manage supported VigorSwitches, push configurations, monitor status, and apply VLAN or QoS settings - all from one local interface.

Unified Mesh & AP Management

Virtual Controller supports two modes for flexible deployment.

Mesh Mode

Automatically creates a self-healing wireless mesh with the Vigor2767 Series as the Root AP and up to 7 Node APs for easy, scalable Wi-Fi coverage.

AP Management Mode

For networks with more than 8 APs, Virtual Controller switches to AP Management mode, enabling centralized control of up to 20 APs via the router's interface.

Seamless Mesh Role Assignment

Devices power on and automatically discover each other, assigning roles as Root or Node APs without manual setup. This auto device role assignment enables quick mesh network formation with optimized coverage and self-healing capabilities.

SWM

Vigor2767 Series can act as master to manage and monitor up to 5 switches. It also provides visibility into PD devices behind the switch, such as IP cameras and access points.

Device Management

Monitor switch status, current firmware version, and uptime across all managed devices.

Port Profile

Create multiple port profiles to provision the PoE, VLAN, QoS, and other settings to selected switches.

Maintenance

Perform configuration backup and restore, remote reboot, or factory reset.

Software Management

VigorACS 3

Zero Touch Deployment & Provisioning
Auto VPN
Interface Quality & SLA
VoIP Optimization & Monitoring
Application Visibility
Application Based SD-WAN Policy
*Click here to check the support model list.
Customized Hotspot Page with Multilingual
Hotspot Clients Analytics
ACS Server Load Balancing / Failover

In the Box

Antenna x 2
(ax model)
RJ-11 to RJ-45 Cable (Annex B)
RJ-11 to RJ-11 Cable (Annex A)
RJ-45 Cable (Ethernet)
Power Adapter
Quick Start Guide

Note: The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.

Model	xDSL WAN	Wi-Fi WAN (backup)	Wi-Fi 6	Firewall	VPN
Vigor2767	(VDSL2 35b)	-	-		16 tunnels
Vigor2767ax	(VDSL2 35b)				16 tunnels

Model

Performance

NAT Session

Max. PON (Mbps)

Max. NAT (Mbps)

Max. NAT with Hardware Acceleration (Mbps)

Max. NAT with Hardware Acceleration : Single WAN (Mbps)

Max. NAT with Hardware Acceleration : Dual WAN (Mbps)

Max. NAT with Software Acceleration (single-directional) (Mbps)

Max. NAT with Software Acceleration (bi-directional) (Mbps)

Max. VDSL Link Rate (Mbps)

Max. ADSL Link Rate (Mbps)

WAN

xDSL

XGS-PON

Ethernet (1 GbE)

Ethernet (2.5 GbE)

Ethernet (10 GbE)

SFP (1G)

SFP (10G)

SFP/Ethernet Combo

Ethernet - Switchable

* When this field is filled, the port count above includes both switchable and fixed ports.

SFP - Switchable

* When this field is filled, the port count above includes both switchable and fixed ports.

SFP/Ethernet Combo - Switchable

* When this field is filled, the port count above includes both switchable and fixed ports.

VDSL Standards

VDSL2 Profile

G.fast Profile

ADSL Standards

Annex Support

Other Standards

Band Plan

Cellular (via USB)

Cellular (Built-in)

Wireless WAN (2.4GHz or 5GHz)

Wireless WAN (2.4GHz + 5GHz)

3G

WCDMA (3G) Band

4G LTE

SIM Slot

LTE Antenna (External Dipole)

LTE Antenna (Internal PIFA)

LTE Category (Up to)

LTE Antenna Peak Gain (dBi)

Max. Rx Link Rate (Mbps)

Max. Tx Link Rate (Mbps)

FDD Band

TDD Band

SMS Gateway

5G

5G Band

4G/5G Antenna (External Dipole)

4G/5G Antenna (Internal PIFA)

4G/5G Antenna Peak Gain (dBi)

5G NSA Max. Rx Link Rate (Mbps)

5G NSA Max. Tx Link Rate (Mbps)

5G SA Max. Rx Link Rate (Mbps)

5G SA Max. Tx Link Rate (Mbps)

Note

Internet Connection

IPv4

IPv6

LTE WAN Bridge

802.1p/q Multi-VLAN Tagging

Virtual WAN

PPPoE Pass-Through

MPoA Bridge

Failover

Load Balancing

Connection Detection

WAN Data Budget

Dynamic DNS

DrayDDNS

LAN

Fixed LAN (RJ-45, 1GbE)

Fixed LAN (RJ-45, 2.5GbE)

Fixed LAN (RJ-45, 10GbE)

Fixed LAN (SFP, 10GbE)

LAN Subnet

VLAN

Max. Number of VLAN

DHCP Server

IPv6 Address Assignment

LAN IP Alias

IP Pool Count

PPPoE Server

Wired 802.1x Authentication

Port Mirroring

Local DNS Server

Conditional DNS Forwarding

Hotspot Web Portal (Profile No.)

Hotspot Authentication

WLAN

2.4GHz WLAN

5GHz WLAN

WiFi Antenna (External)

WiFi Antenna (Internal)

2.4GHz Antenna Gain (dBi)

5GHz Antenna Gain (dBi)

2.4GHz Max. Link Rate (Mbps)

5GHz Max. Link Rate (Mbps)

Max. Number of SSIDs (per band)

Security Mode

Authentication

Wi-Fi 7

Wi-Fi 6

4K-QAM

OFDMA

Roaming

WPS

WDS

Access Control

AirTime Fairness

Band Steering

WMM

Mesh (5GHz Only)

Other Ports

Console (RJ-45)

USB

USB Type

USB Application

SMB File Sharing (Requires external storage)

FXS (RJ-11)

Networking

Routing

Policy-based Routing

Smart Action

DNS Security (DNSSEC)

IGMP

Local RADIUS server

Bandwidth Management

Traffic Shaping Policy

IP-based Bandwidth Limit

IP-based Session Limit

QoS (Quality of Service)

APP QoS

Default Policy

VoIP Prioritization

NAT

Port Forwarding

DMZ Host

Port Trigger

ALG (Application Layer Gateway)

UPnP

Management

Local Service

Config Backup/Restore

Config File Compatibility

Firmware Upgrade

2-Level Administration Privilege

Role-based Privilege

Access Control

Notification Alert

SNMP

Syslog

Broadcast DSL Info to LAN

VPN Managment

Virtual AP Controller (Device up to)

Mesh (Number of manageable APs)

Virtual Switch Controller

VigorACS Management (Since f/w)

Security

URL/IP Reputation

Threat Protection

Firewall Filter

Port Knocking

Defense Setup

MAC Filtering Profile

IPv6 Address Security

IAM

Users & Groups

Access Policies

Group Policies

Conditional Access Policy

Resources

Account Status

Backup and Restore

VPN

Site-to-Site VPN

Teleworker VPN

EasyVPN

Protocols

Max. VPN Tunnels

Max. OpenVPN + SSL VPN Tunnels

IPsec VPN Throughput (AES 256 bits) (single-directional) (Mbps)

IPsec VPN Throughput (AES 256 bits) (bi-directional) (Mbps)

SSL VPN Throughput (single-directional) (Mbps)

SSL VPN Throughput (bi-directional) (Mbps)

WireGuard VPN Throughput (single-directional) (Mbps)

WireGuard VPN Throughput (bi-directional) (Mbps)

User Authentication

IKE Authentication

IPsec Authentication

Encryption

Translate Local Network(Site-to-Site VPN)

VPN Trunk (Redundancy)

Single-Armed VPN

NAT-Traversal (NAT-T)

VPN from LAN

VPN Isolation

VPN Packet Capture

VPN 2FA Authentication for AD/LDAP

VPN Matcher

VPN Connection Status

Backup & Restore

VoIP

Protocols

SIP Registrars

Dial Plan

Call Features

Voice Codec

Caller ID

Linux Applications

Suricata

VigorConnect

Monitoring

Clients List

Log Center

Wireless Information

WAN

ARP Table

Route Table

DHCP Table

IPv6 TSPC Status

IPv6 Neighbor Table

LLDP Neighbors

DNS Cache Table

Cellular WAN Status

DSL Status

XGSPON Information

Remote DSL Status

SFP Information

PPPoE Pass-Through

Session Table

Running Table

Physical

Power Input

Max. Power Consumption (watts)

Memory

Dimension (mm)

Weight (g)

Operating Temperature

Storage Temperature

Operating Humidity (non-condensing)

Vigor2767

2300

ITU-T G.993.1 VDSL

ITU-T G.993.2 VDSL2

ITU-T G.993.5 Vectoring

ITU-T G.997.1

ITU-T G.998.4 Retransmission

8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b

ITU-T G.992.1 ADSL (G.dmt)

ITU-T G.992.3 ADSL2

ITU-T G.992.5 ADSL2+

T1.413 Issue 2

Annex A/B/J/M

998, 997

F Learn More

PPPoE

DHCP

Static IP

PPP

DHCPv6

Static IPv6

TSPC

6rd

6in4 Static Tunnel

ARP, Ping

802.1q Tag-based VLAN

Multiple IP Subnet

Custom DHCP Options

Bind-IP-to-MAC

Click-Through

Social Login

SMS PIN

RADIUS

External Portal Server

2.0

User Management

FTP File Sharing

Device Status

Printer Server

Temperature Sensor

USB WAN

IPv4 Static Route

IPv6 Static Route

Policy Route

Inter-VLAN Route

RIP v1/v2

OSPF(V2/V3)

BGP

Protocol

IP Address

Port

IGMP v2/v3

IGMP Proxy

IGMP Snooping & Fast Leave

IP Address

Port

Application

SIP, RTSP, FTP, H.323

HTTP

HTTPS

Telnet

SSH v2

FTP

TR-069

WUI, TFTP, TR069

Access List, Brute Force Protection

SMS, E-mail

v1, v2c, v3

V5.3.5

IP, Content, Traffic

ARP Spoofing, IP Spoofing

IPsec

IKEv1/IKEv2

IKEv2-EAP

IPsec-XAuth

OpenVPN

WireGuard

L2TP over IPsec

300

Local

RADIUS

TACACS+

mOTP

TOTP

Pre-Shared Key, X.509

SHA-1, SHA-256

DES, 3DES, AES

DC 12V @ 1.15A

13.7

207 x 131 x 42

0 to 45°C

-25 to 70°C

10 to 90%

Vigor2767ax

2300

ITU-T G.993.1 VDSL

ITU-T G.993.2 VDSL2

ITU-T G.993.5 Vectoring

ITU-T G.997.1

ITU-T G.998.4 Retransmission

8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b

ITU-T G.992.1 ADSL (G.dmt)

ITU-T G.992.3 ADSL2

ITU-T G.992.5 ADSL2+

T1.413 Issue 2

Annex A/B/J/M

998, 997

F Learn More

PPPoE

DHCP

Static IP

PPP

DHCPv6

Static IPv6

TSPC

6rd

6in4 Static Tunnel

ARP, Ping

802.1q Tag-based VLAN

Multiple IP Subnet

Custom DHCP Options

Bind-IP-to-MAC

Click-Through

Social Login

SMS PIN

RADIUS

External Portal Server

802.11ax 2x2 MIMO

802.11ax 3x3 MU-MIMO

2.6

2.7

574

2402

OWE

WEP

WPA

WPA2

WPA2/WPA

WPA3

WPA3/WPA2

Pre-Shared Key, 802.1X

Assisted Roaming

WPS Button, PIN Code

Repeater

Access List

Client Isolation

Hide SSID

WLAN Scheduling

Root

2.0

User Management

FTP File Sharing

Device Status

Printer Server

Temperature Sensor

USB WAN

IPv4 Static Route

IPv6 Static Route

Policy Route

Inter-VLAN Route

RIP v1/v2

OSPF(V2/V3)

BGP

Protocol

IP Address

Port

IGMP v2/v3

IGMP Proxy

IGMP Snooping & Fast Leave

IP Address

Port

Application

SIP, RTSP, FTP, H.323

HTTP

HTTPS

Telnet

SSH v2

FTP

TR-069

WUI, TFTP, TR069

Access List, Brute Force Protection

SMS, E-mail

v1, v2c, v3

V5.3.5

IP, Content, Traffic

ARP Spoofing, IP Spoofing

IPsec

IKEv1/IKEv2

IKEv2-EAP

IPsec-XAuth

OpenVPN

WireGuard

L2TP over IPsec

300

Local

RADIUS

TACACS+

mOTP

TOTP

Pre-Shared Key, X.509

SHA-1, SHA-256

DES, 3DES, AES

DC 12V @ 1.8A

21.6

207 x 131 x 42

0 to 45°C

-25 to 70°C

10 to 90%

{
        "NAT Session":"K",
        "Max. PON (Mbps)":"-",
        "Max. NAT (Mbps)":"2300",
        "Max. NAT with Hardware Acceleration (Mbps)":"0",
        "Max. NAT with Hardware Acceleration : Single WAN (Mbps)":"0",
        "Max. NAT with Hardware Acceleration : Dual WAN (Mbps)":"0",
        "Max. NAT with Software Acceleration (single-directional) (Mbps)":"-",
        "Max. NAT with Software Acceleration (bi-directional) (Mbps)":"-",
        "Max. VDSL Link Rate (Mbps)":"-",
        "Max. ADSL Link Rate (Mbps)":"-",
        "xDSL":"1",
        "XGS-PON":"0",
        "Ethernet (GbE)":"0",
        "Ethernet (2.5 GbE)":"1",
        "Ethernet (10 GbE)":"0",
        "SFP (1GbE)":"0",
        "SFP (10GbE)":"0",
        "SFP/Ethernet Combo (GbE)":"0",
        "Ethernet - Switchable":"T",
        "SFP - Switchable":"0",
        "SFP/Ethernet Combo - Switchable":"0",
        "VDSL Standards":"ITU-T G.993.1 VDSL
ITU-T G.993.2 VDSL2
ITU-T G.993.5 Vectoring
ITU-T G.997.1
ITU-T G.998.4 Retransmission",
        "VDSL2 Profile":"8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b",
        "G.fast Profile":"",
        "ADSL Standards":"ITU-T G.992.1 ADSL (G.dmt)
ITU-T G.992.3 ADSL2
ITU-T G.992.5 ADSL2+
T1.413 Issue 2",
        "Annex Support":"Annex A/B/J/M",
        "Other Standards":"",
        "Band Plan":"998, 997",
        "Cellular (via USB)":"2",
        "Cellular (Built-in)":"-",
        "Wireless WAN (2.4GHz or 5GHz)":"F",
        "Wireless WAN (2.4GHz + 5GHz)":"F",
        "WCDMA (3G) Band":"",
        "SIM Slot":"-",
        "LTE Antenna (External Dipole)":"-",
        "LTE Antenna (Internal PIFA)":"-",
        "LTE Category (Up to)":"-",
        "LTE Antenna Peak Gain (dBi)":"",
        "Max. Rx Link Rate (Mbps)":"-",
        "Max. Tx Link Rate (Mbps)":"-",
        "FDD Band":"",
        "TDD Band":"",
        "SMS Gateway":"F",
		"5G Band":"",
		"4G/5G Antenna (External Dipole)":"0",
		"4G/5G Antenna (Internal PIFA)":"0",
		"5G Antenna Peak Gain (dBi)":"-",
		"5G NSA Max. Rx Link Rate (Mbps)":"-",
		"5G NSA Max. Tx Link Rate (Mbps)":"-",
		"5G SA Max. Rx Link Rate (Mbps)":"-",
		"5G SA Max. Tx Link Rate (Mbps)":"-",
        "IPv4":"PPPoE
DHCP
Static IP",
        "IPv6":"PPP
DHCPv6
Static IPv6
TSPC
6rd
6in4 Static Tunnel",
        "LTE WAN Bridge":"F",
        "802.1p/q Multi-VLAN Tagging":"T",
        "Multi-VLAN/PVC":"",
        "Virtual WAN":"F",
        "PPPoE Pass-Through":"F",
        "MPoA Bridge":"F",
        "Failover":"T",
        "Load Balancing":"",
        "Connection Detection":"ARP, Ping",
        "WAN Data Budget":"T",
        "Dynamic DNS":"T",
        "DrayDDNS":"T",
        "Fixed LAN (RJ-45, 1GbE)":"3",
        "Fixed LAN (RJ-45, 2.5GbE)":"-",
        "Fixed LAN (RJ-45, 10GbE)":"-",
        "Fixed LAN (SFP, 10GbE)":"0",
        "LAN Subnet":"4",
        "VLAN":"802.1q Tag-based VLAN",
        "Max. Number of VLAN":"8",
        "DHCP Server":"Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC",
        "IPv6 Address Assignment":"",
        "LAN IP Alias":"F",
        "IP Pool Count":"-",
        "PPPoE Server":"F",
        "Wired 802.1x Authentication":"T",
        "Port Mirroring":"T",
        "Local DNS Server":"T",
        "Conditional DNS Forwarding":"T",
        "Hotspot Web Portal (Profile No.)":"2",
        "Hotspot Authentication":"Click-Through
Social Login
SMS PIN
RADIUS
External Portal Server",
        "2.4GHz WLAN":"",
        "5GHz WLAN":"",
        "WiFi Antenna (External)":"0",
        "WiFi Antenna (Internal)":"0",
        "Antenna Type":"",
        "2.4GHz Antenna Gain (dBi)":"",
        "5GHz Antenna Gain (dBi)":"",
        "2.4GHz Max. Link Rate (Mbps) ":"0",
        "5GHz Max. Link Rate (Mbps)":"0",
        "Max. Number of SSIDs (per band)":"",
        "Security Mode":"",
        "Authentication":"",
        "Wi-Fi 7":"F",
        "Wi-Fi 6":"F",
        "4K-QAM":"F",
        "OFDMA":"F",
        "WPS":"",
        "WDS":"",
        "WLAN Access Control":"",
        "AirTime Fairness":"F",
        "Band Steering":"F",
        "WMM":"F",
        "Mesh (5GHz Only)":"",
        "Console (RJ-45)":"0",
        "USB":"2",
        "USB Type":"2.0",
        "USB Application":"User Management
FTP File Sharing
Device Status
 Printer Server
Temperature Sensor
USB WAN",
        "SMB File Sharing (Requires external storage)":"T",
        "FXS (RJ-11)":"-",
        "Routing":"IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2
 OSPF(V2/V3)
BGP",
        "Policy-based Routing":"Protocol
IP Address
Port",
        "Smart Action":"F",
        "DNS Security (DNSSEC)":"T",
        "IGMP":"IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave",
        "Local RADIUS server":"T",
        "Traffic Shaping Policy":"T",
        "IP-based Bandwidth Limit":"T",
        "IP-based Session Limit":"T",
        "QoS (Quality of Service)":"IP Address
Port
Application",
        "APP QoS":"T",
        "Default Policy":"T",
        "VoIP Prioritization":"T",

        "Port Forwarding":"T",
        "DMZ Host":"T",
        "Port Trigger":"T",
        "ALG (Application Layer Gateway)":"SIP, RTSP, FTP, H.323",
        "UPnP":"T",

        "Local Service":"HTTP
HTTPS
Telnet
SSH v2
FTP
TR-069",
        "Config Backup/Restore":"T",
        "Config File Compatibility":"-",
        "Firmware Upgrade":"WUI, TFTP, TR069",
        "2-Level Administration Privilege":"F",
        "Role-based Privilege":"T",
        "Access Control":"Access List, Brute Force Protection",
        "Notification Alert":"SMS, E-mail",
        "SNMP":"v1, v2c, v3",
        "Syslog":"T",
        "Broadcast DSL Info to LAN":"F",
        "VPN Managment":"0",
        "Virtual AP Controller":"20",
        "Mesh (Number of manageable APs)":"-",
        "Switch Management (SWM)":"5",
        "Virtual Switch Controller":"5",
        "VigorACS Management (Since f/w)":"V5.3.5",
        "URL/IP Reputation":"T",
        "Threat Protection":"*",
        "Firewall Filter":"T",
        "Port Knocking":"IP, Content, Traffic",
        "Defense Setup":"ARP Spoofing, IP Spoofing",
        "MAC Filtering Profile":"T",
        "IPv6 Address Security":"T",
        "Users & Groups":"T",
        "Access Policies":"T",
        "Group Policies":"T",
        "Conditional Access Policy":"T",
        "Resources":"T",
        "Account Status":"T",
        "Backup and Restore":"T",
        "Site-to-Site VPN":"T",
        "Teleworker VPN":"T",
        "EasyVPN":"T",
        "VPN Protocols":"IPsec
IKEv1/IKEv2
IKEv2-EAP
IPsec-XAuth
OpenVPN
WireGuard
L2TP over IPsec",
        "Max. VPN Tunnels":"16",
        "Max. OpenVPN + SSL VPN":"-",
        "IPsec VPN (AES 256 bits) (single-directional) (Mbps)":"300",
        "IPsec VPN (AES 256 bits) (bi-directional) (Mbps)":"-",
        "SSL VPN (single-directional) (Mbps)":"-",
        "SSL VPN (bi-directional) (Mbps)":"-",
        "Wireguard VPN (single-directional) (Mbps)":"50",
        "Wireguard VPN (bi-directional) (Mbps)":"-",
        "User Authentication":"Local
RADIUS
TACACS+
mOTP
TOTP",
        "IKE Authentication":"Pre-Shared Key, X.509",
        "IPsec Authentication":"SHA-1, SHA-256",
        "Encryption":"DES, 3DES, AES",
        "Translate Local Network(Site-to-Site VPN)":"-",
        "VPN Trunk (Redundancy)":"",
        "Single-Armed VPN":"T",
        "NAT-Traversal (NAT-T)":"T",
        "VPN from LAN (Mainline fw only)":"F",
        "VPN Isolation (Mainline fw only)":"F",
        "VPN Packet Capture (Mainline fw only)":"F",
        "VPN 2FA Authentication for AD/LDAP (Mainline fw only)":"F",
        "VPN Matcher":"T",
        "VPN Connection Status":"T",
        "Backup & Restore":"T",
        "Protocols":"",
        "SIP Registrars":"-",
        "Dial Plan":"",
        "Call Features":"",
        "Voice Codec":"",
        "Caller ID":"",
        "Suricata":"F",
        "VigorConnect":"F",
        "Clients List":"T",
        "Log Center":"T",
        "Wireless Information":"F",
        "WAN":"T",
        "ARP Table":"T",
        "Route Table":"T",
        "DHCP Table":"T",
        "IPv6 TSPC Status":"T",
        "IPv6 Neighbor Table":"T",
        "LLDP Neighbors":"T",
        "DNS Cache Table":"T",
        "Cellular WAN Status":"F",
        "DSL Status":"T",
        "XGSPON Information":"F",
        "Remote DSL Status":"T",
        "SFP Information":"T",
        "Monitoring PPPoE Pass-Through":"T",
        "Session Table":"T",
        "Running Table":"T",
        "Power Input":"DC 12V @ 1.15A",
        "Max. Power Consumption (watts)":"13.7",
        "Memory":"-",
        "Dimension (mm)":"207 x 131 x 42",
        "Weight (g)":"",
        "Operating Temperature":"0 to 45°C",
        "Storage Temperature":"-25 to 70°C",
        "Operating Humidity (non-condensing)":"10 to 90%"
        }

{
        "NAT Session":"K",
        "Max. PON (Mbps)":"-",
        "Max. NAT (Mbps)":"2300",
        "Max. NAT with Hardware Acceleration (Mbps)":"0",
        "Max. NAT with Hardware Acceleration : Single WAN (Mbps)":"0",
        "Max. NAT with Hardware Acceleration : Dual WAN (Mbps)":"0",
        "Max. NAT with Software Acceleration (single-directional) (Mbps)":"-",
        "Max. NAT with Software Acceleration (bi-directional) (Mbps)":"-",
        "Max. VDSL Link Rate (Mbps)":"-",
        "Max. ADSL Link Rate (Mbps)":"-",
        "xDSL":"1",
        "XGS-PON":"0",
        "Ethernet (GbE)":"0",
        "Ethernet (2.5 GbE)":"1",
        "Ethernet (10 GbE)":"0",
        "SFP (1GbE)":"0",
        "SFP (10GbE)":"0",
        "SFP/Ethernet Combo (GbE)":"0",
        "Ethernet - Switchable":"T",
        "SFP - Switchable":"0",
        "SFP/Ethernet Combo - Switchable":"0",
        "VDSL Standards":"ITU-T G.993.1 VDSL
ITU-T G.993.2 VDSL2
ITU-T G.993.5 Vectoring
ITU-T G.997.1
ITU-T G.998.4 Retransmission",
        "VDSL2 Profile":"8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b",
        "G.fast Profile":"",
        "ADSL Standards":"ITU-T G.992.1 ADSL (G.dmt)
ITU-T G.992.3 ADSL2
ITU-T G.992.5 ADSL2+
T1.413 Issue 2",
        "Annex Support":"Annex A/B/J/M",
        "Other Standards":"",
        "Band Plan":"998, 997",
        "Cellular (via USB)":"2",
        "Cellular (Built-in)":"-",
        "Wireless WAN (2.4GHz or 5GHz)":"F",
        "Wireless WAN (2.4GHz + 5GHz)":"T",
        "WCDMA (3G) Band":"",
        "SIM Slot":"-",
        "LTE Antenna (External Dipole)":"-",
        "LTE Antenna (Internal PIFA)":"-",
        "LTE Category (Up to)":"-",
        "LTE Antenna Peak Gain (dBi)":"",
        "Max. Rx Link Rate (Mbps)":"-",
        "Max. Tx Link Rate (Mbps)":"-",
        "FDD Band":"",
        "TDD Band":"",
        "SMS Gateway":"F",
		"5G Band":"",
		"4G/5G Antenna (External Dipole)":"0",
		"4G/5G Antenna (Internal PIFA)":"0",
		"5G Antenna Peak Gain (dBi)":"-",
		"5G NSA Max. Rx Link Rate (Mbps)":"-",
		"5G NSA Max. Tx Link Rate (Mbps)":"-",
		"5G SA Max. Rx Link Rate (Mbps)":"-",
		"5G SA Max. Tx Link Rate (Mbps)":"-",
        "IPv4":"PPPoE
DHCP
Static IP",
        "IPv6":"PPP
DHCPv6
Static IPv6
TSPC
6rd
6in4 Static Tunnel",
        "LTE WAN Bridge":"F",
        "802.1p/q Multi-VLAN Tagging":"T",
        "Multi-VLAN/PVC":"",
        "Virtual WAN":"F",
        "PPPoE Pass-Through":"F",
        "MPoA Bridge":"F",
        "Failover":"T",
        "Load Balancing":"",
        "Connection Detection":"ARP, Ping",
        "WAN Data Budget":"T",
        "Dynamic DNS":"T",
        "DrayDDNS":"T",
        "Fixed LAN (RJ-45, 1GbE)":"3",
        "Fixed LAN (RJ-45, 2.5GbE)":"-",
        "Fixed LAN (RJ-45, 10GbE)":"-",
        "Fixed LAN (SFP, 10GbE)":"0",
        "LAN Subnet":"4",
        "VLAN":"802.1q Tag-based VLAN",
        "Max. Number of VLAN":"8",
        "DHCP Server":"Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC",
        "IPv6 Address Assignment":"",
        "LAN IP Alias":"F",
        "IP Pool Count":"-",
        "PPPoE Server":"F",
        "Wired 802.1x Authentication":"T",
        "Port Mirroring":"T",
        "Local DNS Server":"T",
        "Conditional DNS Forwarding":"T",
        "Hotspot Web Portal (Profile No.)":"2",
        "Hotspot Authentication":"Click-Through
Social Login
SMS PIN
RADIUS
External Portal Server",
        "2.4GHz WLAN":"802.11ax 2x2 MIMO",
        "5GHz WLAN":"802.11ax 3x3 MU-MIMO",
        "WiFi Antenna (External)":"2",
        "WiFi Antenna (Internal)":"1",
        "Antenna Type":"",
        "2.4GHz Antenna Gain (dBi)":"2.6",
        "5GHz Antenna Gain (dBi)":"2.7",
        "2.4GHz Max. Link Rate (Mbps) ":"574",
        "5GHz Max. Link Rate (Mbps)":"2402",
        "Max. Number of SSIDs (per band)":"",
        "Security Mode":"OWE
WEP
WPA
WPA2
WPA2/WPA
WPA3
WPA3/WPA2",
        "Authentication":"Pre-Shared Key, 802.1X",
        "Wi-Fi 7":"F",
        "Wi-Fi 6":"T",
        "4K-QAM":"F",
        "OFDMA":"T",
        "WPS":"WPS Button, PIN Code",
        "WDS":"Repeater",
        "WLAN Access Control":"Access List
Client Isolation
Hide SSID
WLAN Scheduling",
        "AirTime Fairness":"T",
        "Band Steering":"T",
        "WMM":"T",
        "Mesh (5GHz Only)":"Root",
        "Console (RJ-45)":"0",
        "USB":"2",
        "USB Type":"2.0",
        "USB Application":"User Management
FTP File Sharing
Device Status
 Printer Server
Temperature Sensor
USB WAN",
        "SMB File Sharing (Requires external storage)":"T",
        "FXS (RJ-11)":"-",
        "Routing":"IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2
 OSPF(V2/V3)
BGP",
        "Policy-based Routing":"Protocol
IP Address
Port",
        "Smart Action":"F",
        "DNS Security (DNSSEC)":"T",
        "IGMP":"IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave",
        "Local RADIUS server":"T",
        "Traffic Shaping Policy":"T",
        "IP-based Bandwidth Limit":"T",
        "IP-based Session Limit":"T",
        "QoS (Quality of Service)":"IP Address
Port
Application",
        "APP QoS":"T",
        "Default Policy":"T",
        "VoIP Prioritization":"T",

        "Port Forwarding":"T",
        "DMZ Host":"T",
        "Port Trigger":"T",
        "ALG (Application Layer Gateway)":"SIP, RTSP, FTP, H.323",
        "UPnP":"T",

        "Local Service":"HTTP
HTTPS
Telnet
SSH v2
FTP
TR-069",
        "Config Backup/Restore":"T",
        "Config File Compatibility":"-",
        "Firmware Upgrade":"WUI, TFTP, TR069",
        "2-Level Administration Privilege":"F",
        "Role-based Privilege":"T",
        "Access Control":"Access List, Brute Force Protection",
        "Notification Alert":"SMS, E-mail",
        "SNMP":"v1, v2c, v3",
        "Syslog":"T",
        "Broadcast DSL Info to LAN":"F",
        "VPN Managment":"0",
        "Virtual AP Controller":"20",
        "Mesh (Number of manageable APs)":"7",
        "Switch Management (SWM)":"5",
        "Virtual Switch Controller":"5",
        "VigorACS Management (Since f/w)":"V5.3.5",
        "URL/IP Reputation":"T",
        "Threat Protection":"*",
        "Firewall Filter":"T",
        "Port Knocking":"IP, Content, Traffic",
        "Defense Setup":"ARP Spoofing, IP Spoofing",
        "MAC Filtering Profile":"T",
        "IPv6 Address Security":"T",
        "Users & Groups":"T",
        "Access Policies":"T",
        "Group Policies":"T",
        "Conditional Access Policy":"T",
        "Resources":"T",
        "Account Status":"T",
        "Backup and Restore":"T",
        "Site-to-Site VPN":"T",
        "Teleworker VPN":"T",
        "EasyVPN":"T",
        "VPN Protocols":"IPsec
IKEv1/IKEv2
IKEv2-EAP
IPsec-XAuth
OpenVPN
WireGuard
L2TP over IPsec",
        "Max. VPN Tunnels":"16",
        "Max. OpenVPN + SSL VPN":"-",
        "IPsec VPN (AES 256 bits) (single-directional) (Mbps)":"300",
        "IPsec VPN (AES 256 bits) (bi-directional) (Mbps)":"-",
        "SSL VPN (single-directional) (Mbps)":"-",
        "SSL VPN (bi-directional) (Mbps)":"-",
        "Wireguard VPN (single-directional) (Mbps)":"50",
        "Wireguard VPN (bi-directional) (Mbps)":"-",
        "User Authentication":"Local
RADIUS
TACACS+
mOTP
TOTP",
        "IKE Authentication":"Pre-Shared Key, X.509",
        "IPsec Authentication":"SHA-1, SHA-256",
        "Encryption":"DES, 3DES, AES",
        "Translate Local Network(Site-to-Site VPN)":"-",
        "VPN Trunk (Redundancy)":"",
        "Single-Armed VPN":"T",
        "NAT-Traversal (NAT-T)":"T",
        "VPN from LAN (Mainline fw only)":"F",
        "VPN Isolation (Mainline fw only)":"F",
        "VPN Packet Capture (Mainline fw only)":"F",
        "VPN 2FA Authentication for AD/LDAP (Mainline fw only)":"F",
        "VPN Matcher":"T",
        "VPN Connection Status":"T",
        "Backup & Restore":"T",
        "Protocols":"",
        "SIP Registrars":"-",
        "Dial Plan":"",
        "Call Features":"",
        "Voice Codec":"",
        "Caller ID":"",
        "Suricata":"F",
        "VigorConnect":"F",
        "Clients List":"T",
        "Log Center":"T",
        "Wireless Information":"T",
        "WAN":"T",
        "ARP Table":"T",
        "Route Table":"T",
        "DHCP Table":"T",
        "IPv6 TSPC Status":"T",
        "IPv6 Neighbor Table":"T",
        "LLDP Neighbors":"T",
        "DNS Cache Table":"T",
        "Cellular WAN Status":"F",
        "DSL Status":"T",
        "XGSPON Information":"F",
        "Remote DSL Status":"T",
        "SFP Information":"T",
        "Monitoring PPPoE Pass-Through":"T",
        "Session Table":"T",
        "Running Table":"T",
        "Power Input":"DC 12V @ 1.8A",
        "Max. Power Consumption (watts)":"21.6",
        "Memory":"-",
        "Dimension (mm)":"207 x 131 x 42",
        "Weight (g)":"",
        "Operating Temperature":"0 to 45°C",
        "Storage Temperature":"-25 to 70°C",
        "Operating Humidity (non-condensing)":"10 to 90%"
        }

Note:

* : Future Support
The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.

URL/IP Reputation

Threat Intelligence Service.

Vigor2767 Series

VDSL2 35b Supervectoring Router

2.5 GbE

VDSL2 35b

16 VPN

AX 3000*

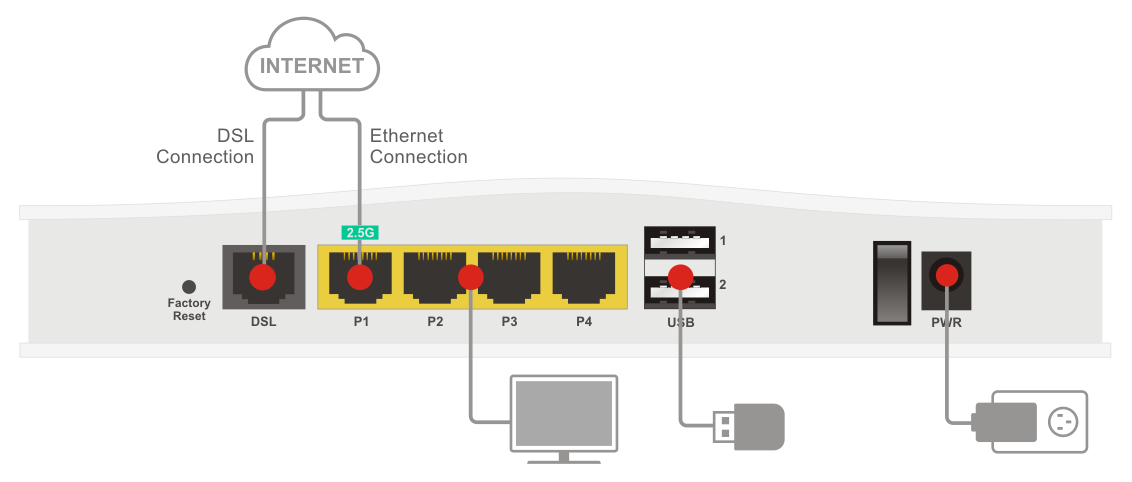

Interface

Key Features

2.5GbE

35b Supervectoring Modem

Bandwidth Management

DrayDDNS

VPN (Virtual Private Network)

EasyVPN

Port Knocking

Firewall & Content Filter

URL/IP Reputation

IAM

Hotspot Web Portal

Wi-Fi 6 (ax model only)

Mesh (Wireless model only)

Virtual AP/Switch controller

Threat Protection

Faster Wired Connections

Beyond Gigabit

NAT & Routing Performance

Effortless Secure Access with EasyVPN

Stealth Security Protection with Port Knocking

Port Redirection

Router Management Access

VPN Service Control (WAN Binding)

How It Works

Vigor2767 Series with Wi-Fi 6 capacity (ax model)

OFDM

OFDMA

URL Reputation

IP Reputation

IAM Identity and Access Management

Vigor2767 Series with the new DrayOS 5 is Zero Trust ready!

Users & Groups

Access Policies

Group Policies

Conditional Access Policy

Resources

Hotspot Web Portal

Account Status

Backup and Restore

Seamless Wi-Fi Roaming

Fast & Smooth Handover

Smarter Assisted Roaming

Always Optimized for Business

WiFi Roaming

Roaming Protocol

Assisted Roaming

Mesh

Management Solution

Virtual Controller

On-Device Network Management with DrayTek Virtual Controller

Wireless Management

Switch Management

Unified Mesh & AP Management

Mesh Mode

AP Management Mode

Seamless Mesh Role Assignment

SWM

Device Management

Port Profile

Maintenance

Software Management

VigorACS 3

In the Box

Model

Performance

WAN

3G

4G LTE

5G

Internet Connection

LAN

WLAN
