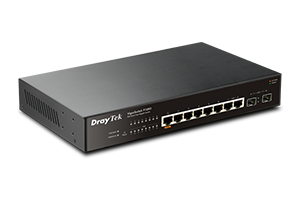

DrayTek VigorSwitch P1092 is a Smart Lite managed Gigabit PoE switch. It has 8x Gigabit Ethernet ports compliant with PoE and PoE+ ports and a power budget of 110 watts. It also equipped with 2x Gigabit SFP slots and basic management features, including 802.1q tag-based VLAN and QoS.
8 PoE Ports
PoE/PoE+ Gigabit Ethernet, RJ-45
110 watts
of PoE Power Budget
2x SFP
1000Mbps Fiber Slot
2x LACPUp to 2 Link Aggregation Groups
Key Features
PoE (Power over Ethernet)
Deliver power and data over one ethernet cable to reduce the cost of electrical infrastructure.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
In-the-Box
VigorSwitch P1092
Rack Mount Kit
(brackets)
Power Cord
Quick Start Guide
Related Products
Note : The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
Interface | |
| Ethernet Port | 8x 10/100/1000Mbps Ethernet, RJ-45 |
| Fiber Slot | 2x 100/1000Mbps SFP |
| Button | 1x Factory Reset Button |
PoE | |
| PoE Capable Ports | 8 |
| PoE Standards | PoE/PoE+(802.3af/802.3at), Type mode A |
| PoE Power Budget | 110 watts |
Capacity | |
| Buffer Size | 1.5 Mbit |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.9 Mpps (64 bytes) |
| MAC Address Table | 4k |
| Jumbo Frame | Up to 9KB |
Networking Standards | |
| IP Version | IPv4 |
| Ethernet Standards | 802.3af PoE 802.3at PoE+ 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.1q Tag-based VLAN 802.3x Flow Control 802.3 Auto-Negotiation 802.1p Class of Service 802.3ad LACP 802.3az EEE |
VLAN | |
| Max.Number of VLAN | 10 |
| VLAN Type | 802.1q Tag-based, Port-based |
QoS | |
| Number of QoS Queues | 4 |
| Rate Limit | Port-Based Ingress and Egress |
| Queue Scheduling | SPQ, WFQ |
| CoS (Class of Service) | 802.1p CoS |
Traffic Control | |
| Storm Control | Broadcast, Multicast, Unicast |
| Loop Prevention | |
Link Aggregation | |
| Max. Number of Group | 2 |
| Member Port | GE7 & GE8, SFP1 & SFP2 |
| Type | LACP |
Multicast | |
| IGMP Snooping | v2 |
| Max. Number of Multicast Group | 128 |
Management | |
| Web Interface | HTTP |
| Diagnostics Tools | Port Mirroring |
| Config File Export/Import | |
| Managed by Vigor Router SWM | |
| Managed by VigorConnect | |
Physical | |
| 19-inch Rack Mountable | Mouting Kit Included |
| Power Input | AC 100-240V @ 2.6A |
| Max. Power Consumption | 141.3 watts |
| Dimension | 265mm x 184mm x 44mm |
| Weight | 1.68 kg (3.7 lb) |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
| Certificate |   |
Note : The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
