DrayTek VigorSwitch Q2300x features 2.5GbE ports for LAN and 10G SFP+ ports for uplink/downlink. When used with WiFi 6 VigorAPs (e.g., VigorAP 962C), the PQ2300xb delivers full WiFi 6 performance to LAN clients.
Supporting advanced Layer 3 features, DHCP Server, and VLAN Routing, the VigorSwitch Q2300x improves network efficiency and ensures your LAN network continues functioning, making it an ideal core switch for SMEs/SMBs.
24x 2.5GbE
10M/100M/1G/2.5G Ethernet, RJ-45
6x 10G SFP+
1G/10G SFP+
240 Gbps
Switching Capacity

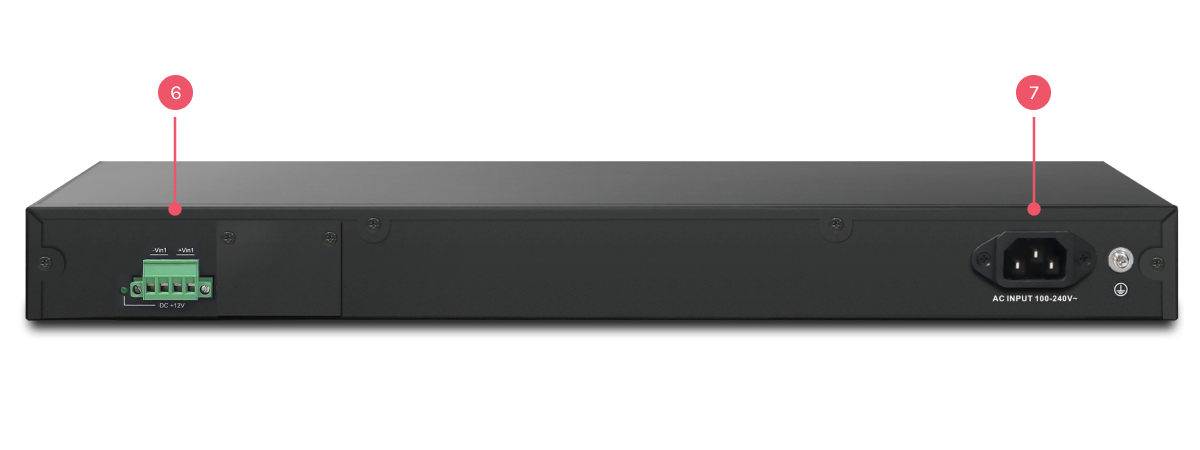

Backup Power
DC 12V redundant power socket

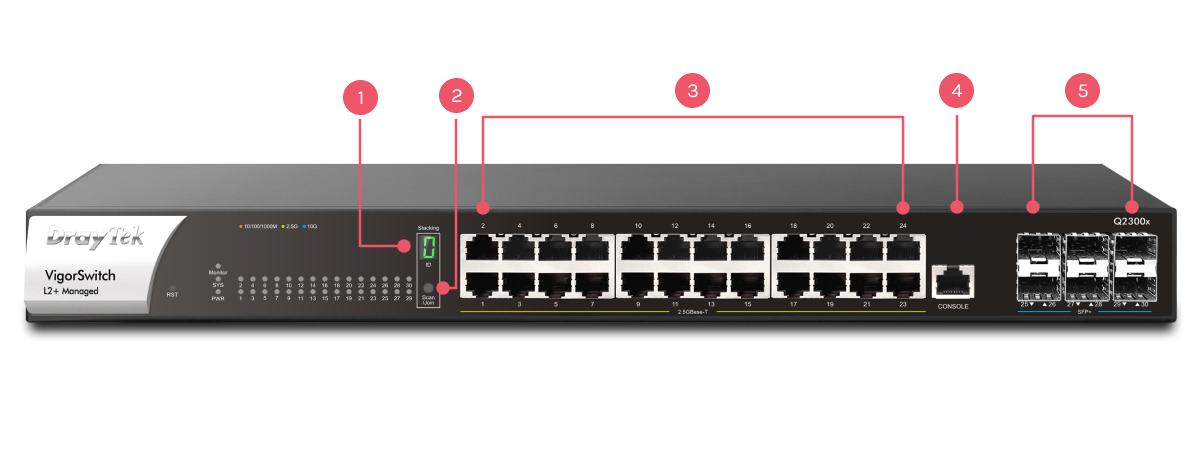

124x 2.5GbE
2Console Port
36x SFP+ Ports
41x DC Power Socket (backup usage)
5Power Socket
Key Features
2.5GbE
Provides higher performance to WiFi 6 AP and other Ethernet devices.
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch Q2300x to route the inter-VLAN traffic directly and offload the router.
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
IPv6 Ready
VigorSwitch Q2300x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
Centralized Hierarchical View
VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.
Images Viewing
Images filmed by IP cameras can be viewed directly on VigorSwitch.
Device Management
Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.
ONVIF Snapshot Alert
Locating Not-Responding Cameras Made Easy
It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.
To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.
With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.
IP Conflict Detection & Prevention
Conflict Detection
Keep an eye on the environment and notify the administrator of any IP conflicts.
Conflict Prevention
For a more stable network, VigorSwitch can't only detect but block the misconfigured or malicious IP host.
Device Check
Ping Check for LAN Devices
VigorSwitch keeps pinging on the LAN devices. Once the device stops responding to the ping, PoE cycle a port (PoE model only) or send email alert.
LAN Management
DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.
Automatic Device Discovery
All you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed.
Provisioning
Switch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely.
Monitoring
VigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there's log and alert happens.
System Maintenance
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There's no need to log in to each device's management page.
Management Solution
All-in-One Management
Vigor Router SWM
Auto-Discovery, Provisioning, Monitoring, Centralized Hierarchy View, Reboot PoE Devices Remotely, Quick VLAN Configuration
Software Management
Rack Mount Kit
Console Cable
Power Cord
Quick Start Guide
Note : The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
