Customer
INTAN Southern Regional Campus
Challenges
-
Existing Access Points are from different brands, making unified management challenging.
-
Access points are poorly positioned, resulting in weak WiFi coverage and numerous dead zones.
-
All WiFi clients are connected to the same network, which increases the risk of internal data exposure.
Solutions and Benefits
1. WiFi6 AX6000 with PoE support
VigorSwitch PQ2200xb supports both PoE+ and PoE++ standards, making VigorAP 1062C deployment more flexible by eliminating the limitations of power outlet locations. With WiFi 6 capability, the VigorAP 1062C delivers fast and efficient wireless connectivity across the entire campus.

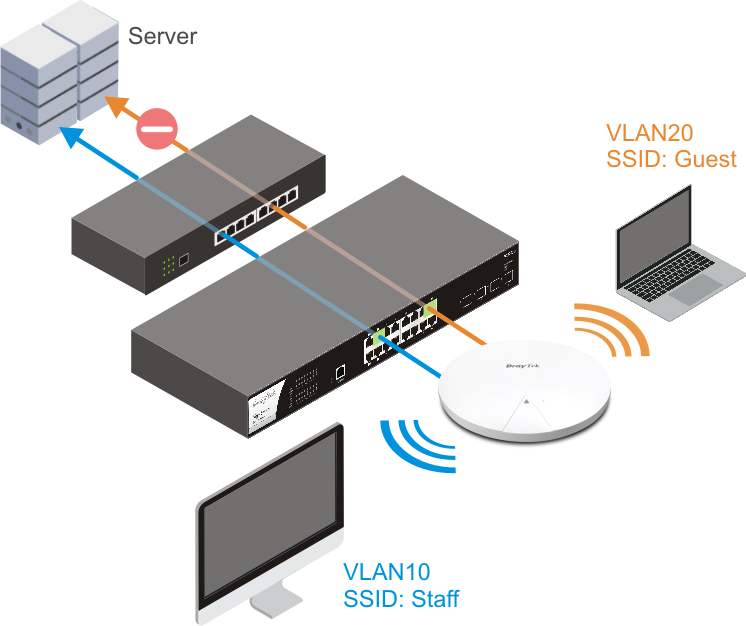

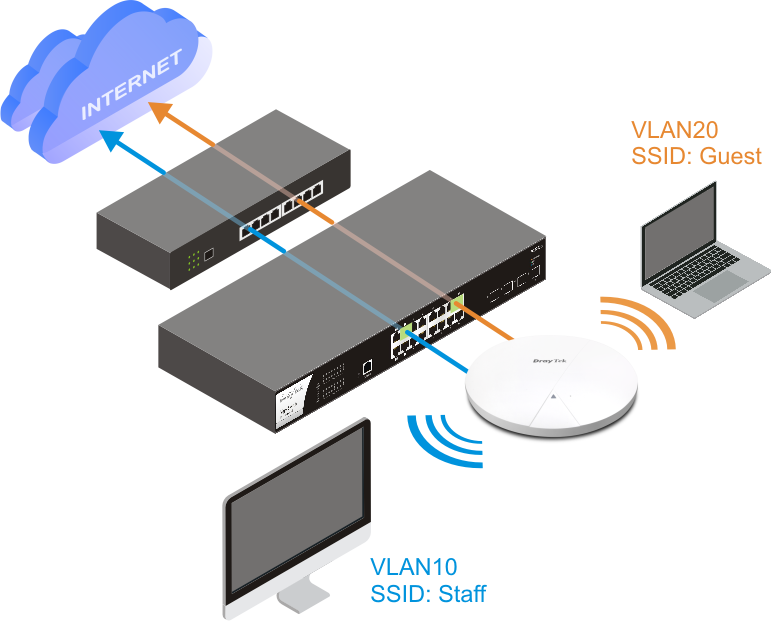

2. Implement separate WiFi networks to safeguard sensitive campus data

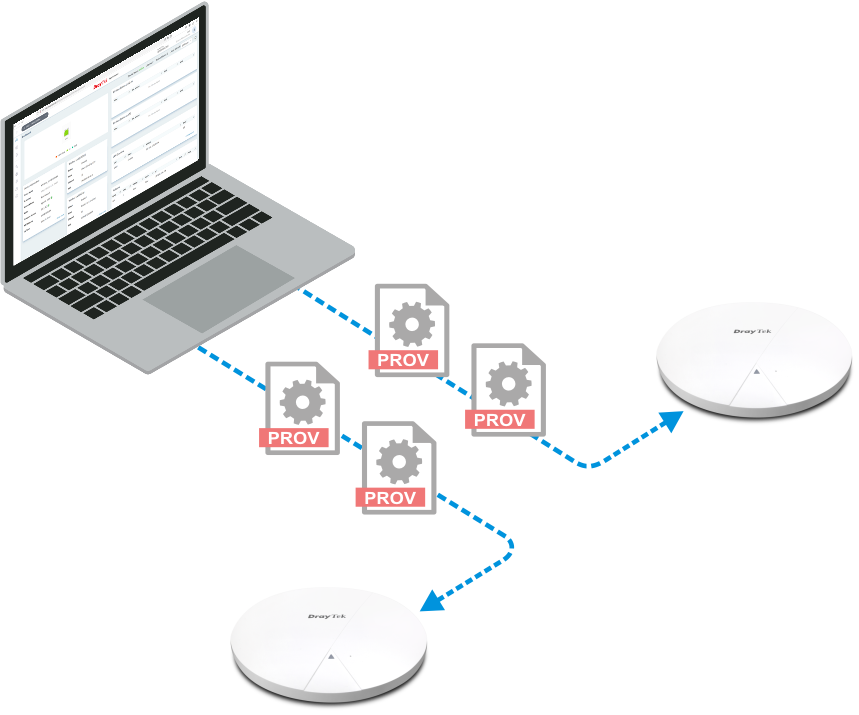

Enable two VLANs on the VigorSwitch PQ2200xb and two SSIDs on the VigorAP 1062C to segment the network into separate LANs, one for guests and one for internal staffs. With VigorConnect, two independent SSID configurations can be quickly deployed to each VigorAP 1062C across multiple campus locations.

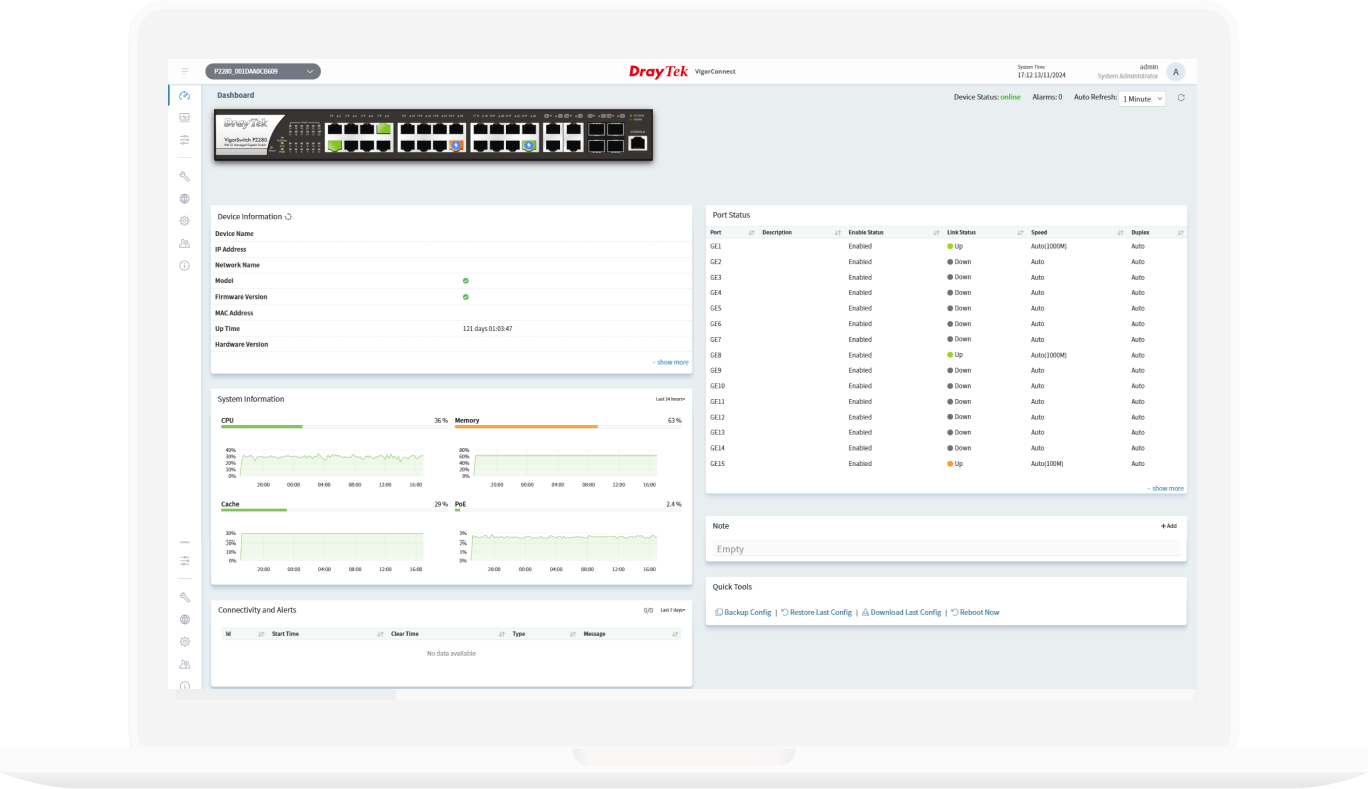

3. Simplify campus network management with VigorConnect
Install VigorConnect, a local network management tool, to efficiently oversee and manage all VigorSwitch PQ2200xb and VigorAP 1062C devices on campus. This tool allows IT administrators to centrally provision and configure deployed switches and access points, streamlining network management across classrooms, dormitories, and administrative buildings.
By using VigorConnect, campuses can ensure consistent network performance, reduce manual setup efforts, and quickly address connectivity issues, providing students, faculty, and staff with a seamless online network experience.
