L2TP over IPsec from Windows 7 to Vigor Router

This document introduces how to create a Host-to-LAN VPN from Windows 7 Built-In VPN Client to a Vigor Router. In this example, we use L2TP over IPsec VPN. There will be two parts of contents, set up Vigor Router as a VPN server, and connecting VPN from Windows 7.

Vigor Router Configuration

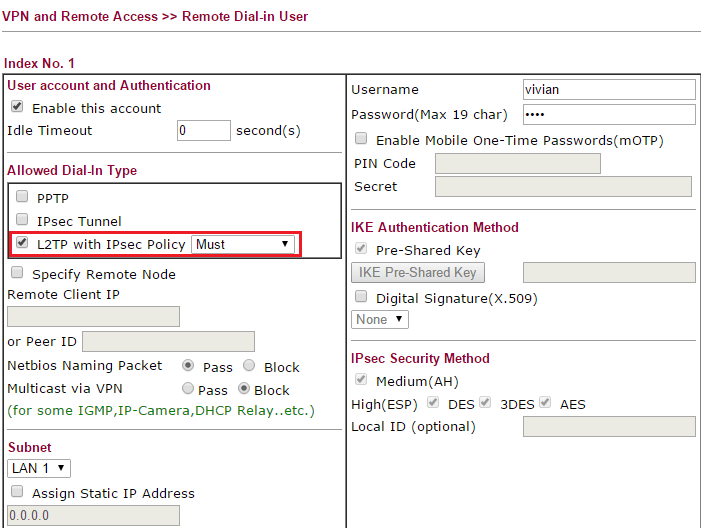

1. Create a Remote Dial-In User profile in VPN and Remote Access >> Remote Dial-In User.

  1. Check Enable this account.
  2. Type the Username and Password.
  3. Select L2TP and IPsec Policy as Must.
a screenshot of Vigor2920

2. Type the Pre-Shared Key in VPN and Remote Access >> IPsec General Setup.

a screenshot of Vigor2920

VPN Configuration on Windows 7

1. Set a new connection or network in Control Panel >> Network and Sharing Center.

a screenshot of Windows 7 Network Connection

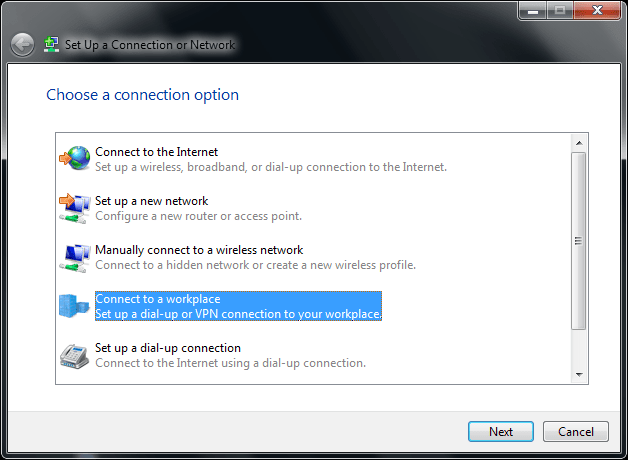

2. Select Connect to a workplace, and click Next.

a screenshot of Windows 7 Network Connection

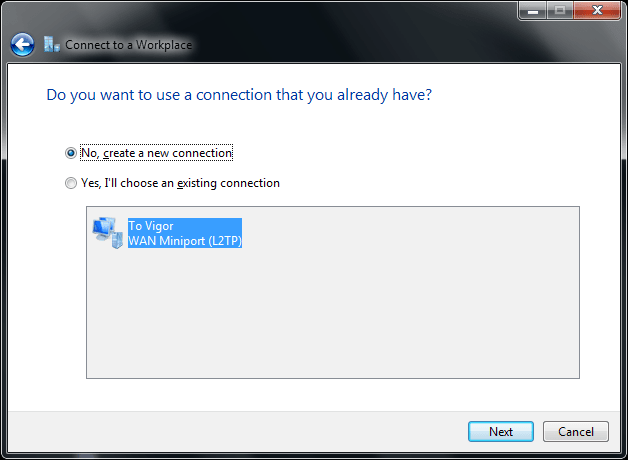

3. Select create a new connection, and click Next.

a screenshot of Windows 7 Network Connection

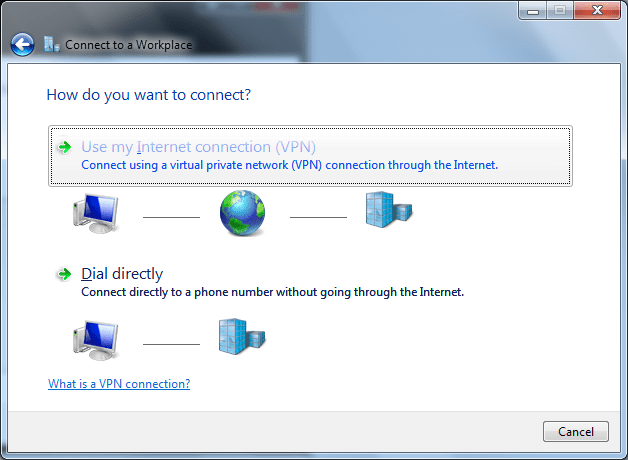

4. Select Use my Internet Connection.

a screenshot of Windows 7 Network Connection

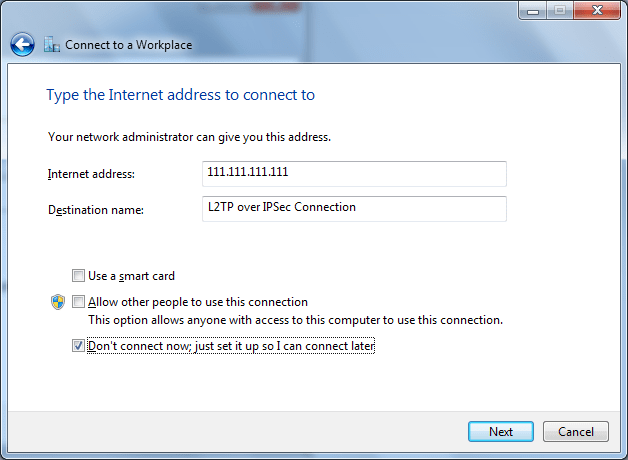

5. Type Vigor Router's WAN IP at Internet address, and tick the Don't connect now option, and click Next.

a screenshot of Windows 7 Network Connection

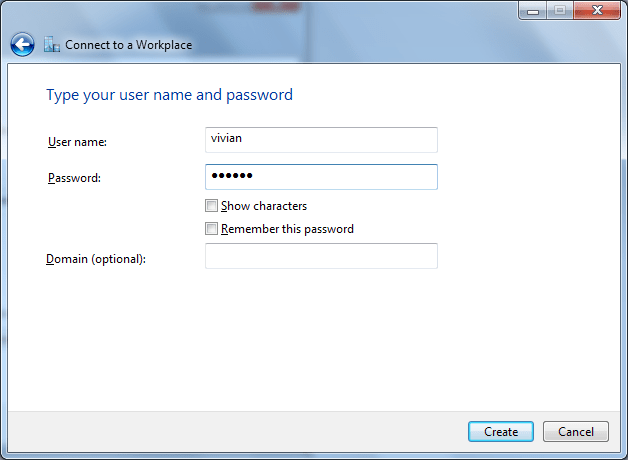

6. Type the Username and Password for L2TP VPN connection, and click Create.

a screenshot of Windows 7 Network Connection

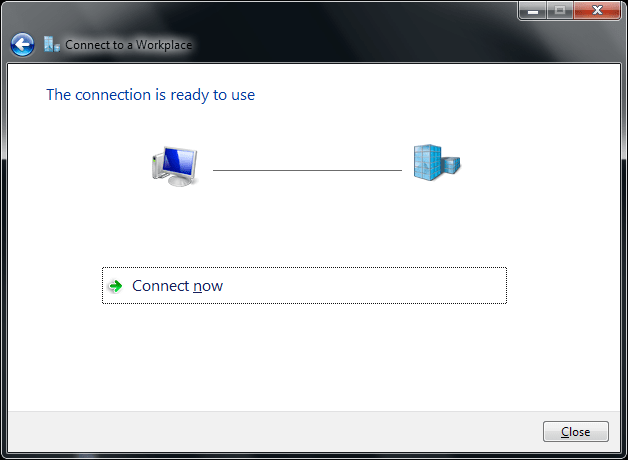

7. Do not click Connect Now, and click Close instead.

a screenshot of Windows 7 Network Connection

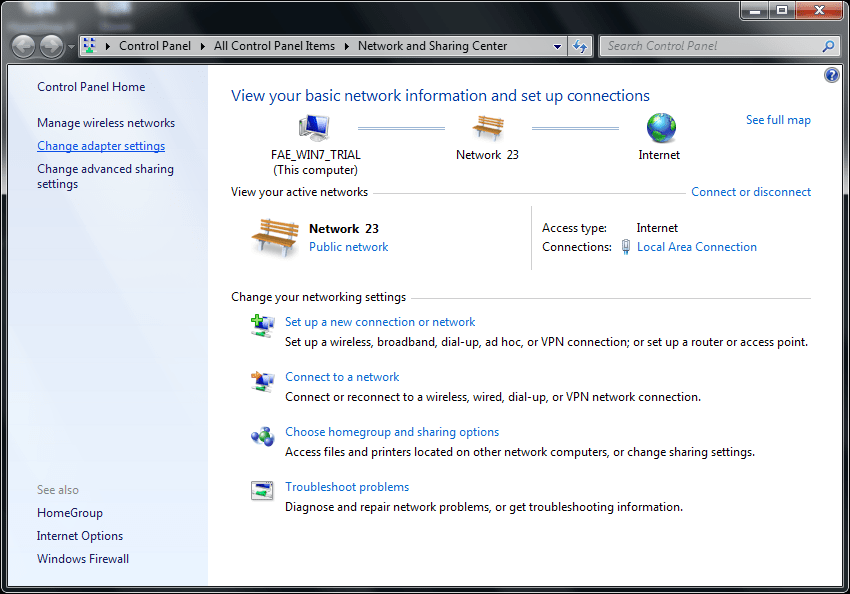

8. Click Change adapter settings in Control Panel >> Network Sharing Center.

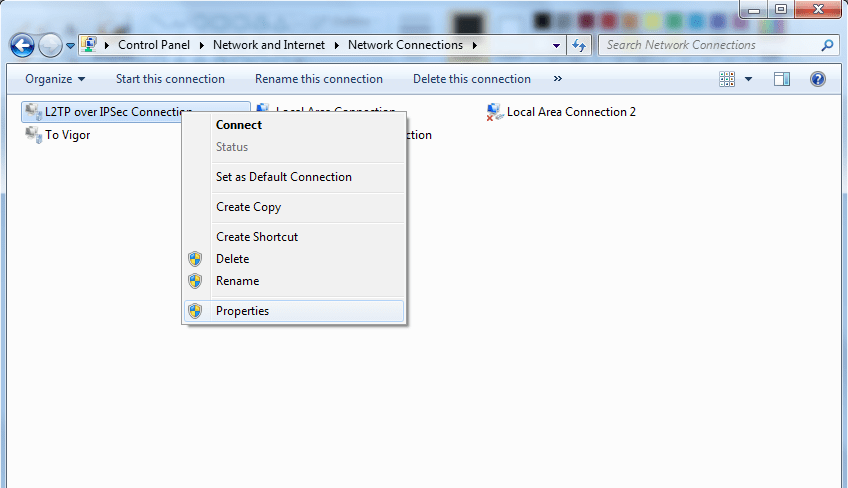

9. Right-click L2TP over IPSec Connection we created, and then select Properties.

a screenshot of Windows 7 Network Connection

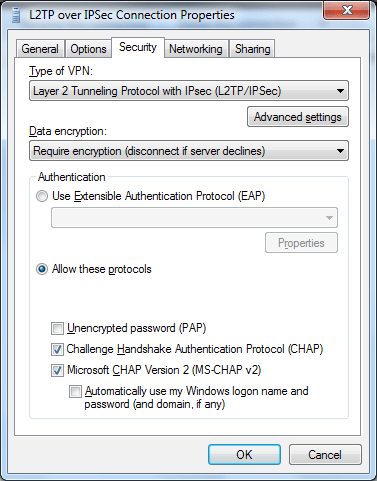

10. Select VPN Type as L2TP / IPSec in the Security Tab, and then click Advanced Settings.

a screenshot of Windows 7 Network Connection

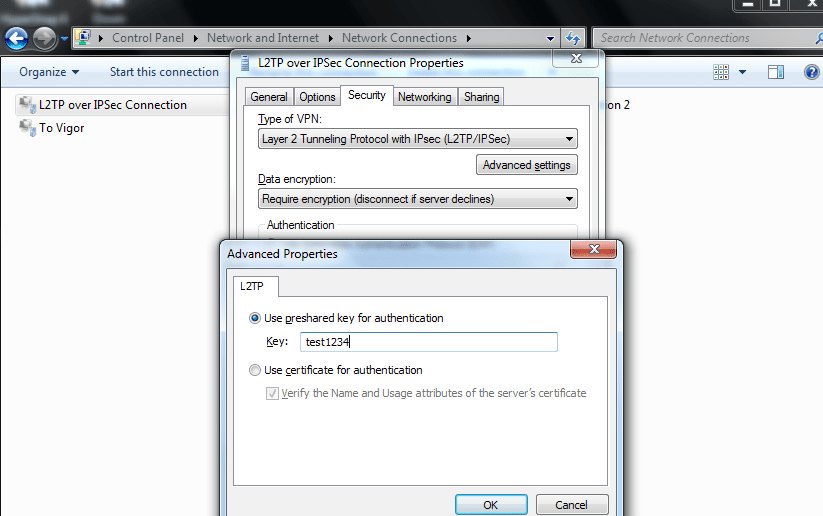

11. Select Use pre-shared key for authentication, type the key and then click OK. The key should be the same as the Pre-Shared Key setting on Vigor Router.

a screenshot of Windows 7 Network Connection

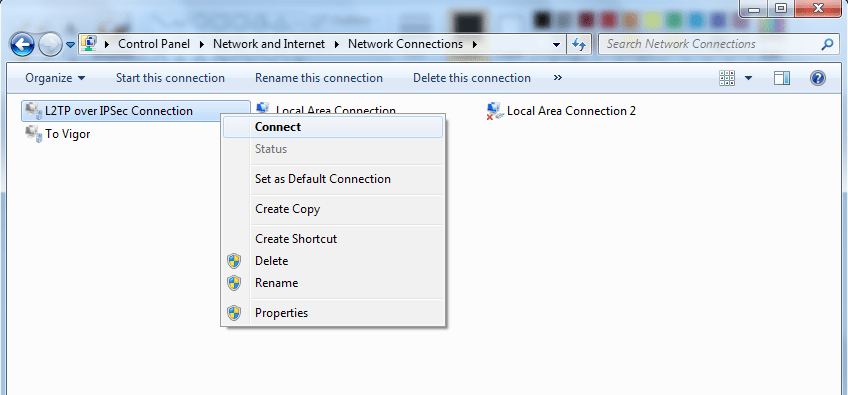

12. Right-click L2TP over IPSec Connection, and select Connect

a screenshot of Windows 7 Network Connection

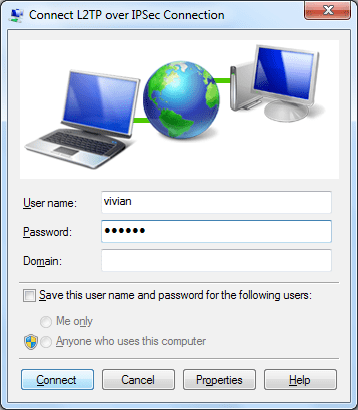

13. Type the Username and Password, and click Connect. The Username and Password should be the same as the ones in the router's VPN Remote Dial-In User Profile.

a screenshot of Windows 7 Network Connection

14. L2TP over IPSec connection is now established.

a screenshot of Windows 7 Network Connection

Trouble-shooting:

If the L2TP over IPSec tunnel from Windows 7 to Vigor router could not be established successfully, please check the settings below

Published On:2016-04-22
