Change VigorACS server port

VigorACS is a Vigor centralized management software, which supports STUN service, and ACS could also become a Syslog server.
By default, VigorACS will use the following default service port:

• HTTP: TCP 80 port
• HTTPS: TCP 443 port
• STUN: UDP 3478 port
• Syslog: UDP 514 port

This article demonstrates how to change the service port for VigorACS.

Configuration File

Port configuration of ACS service could be found on the {ACS installed path}\bin.
The default path for Windows is C:\Program Files\VigorACS\bin; And the default file path of Linux is /usr/local/vigoracs/VigorACS/bin.
You will see several .txt file on the bin folder:

• HTTP port configuration: httpport.txt
• HTTPS port configuration: httpsport.txt
• STUN port configuration: stunport.txt
• Syslog port configuration: syslogport.txt

Change web port on Windows

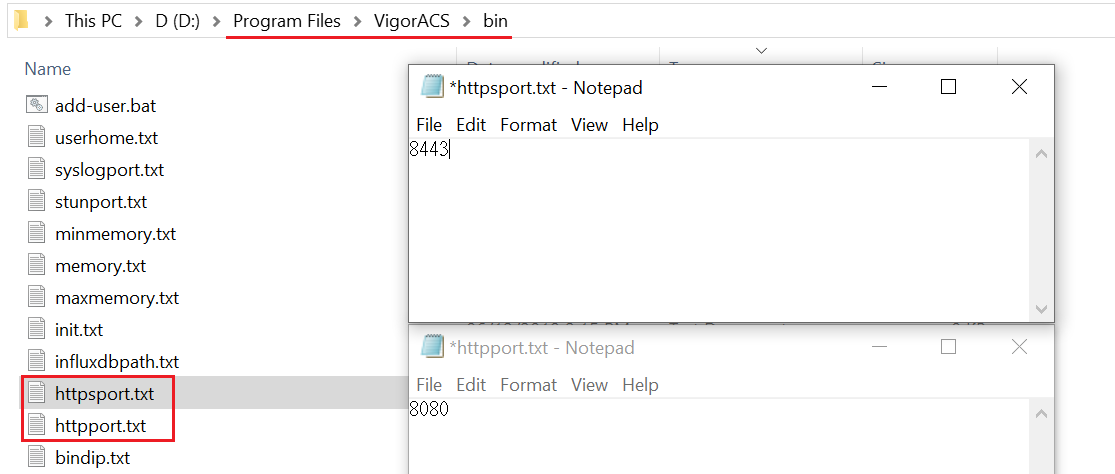

1. Change the port: Go to {ACS installed path}\bin and use the editor(notepad or Word) to open the httpport.txt file. Change the number in the file content to the HTTP port number which you'd like to use then save the file. And do the same operation for httpsport.txt to change the port number based on your requirement.

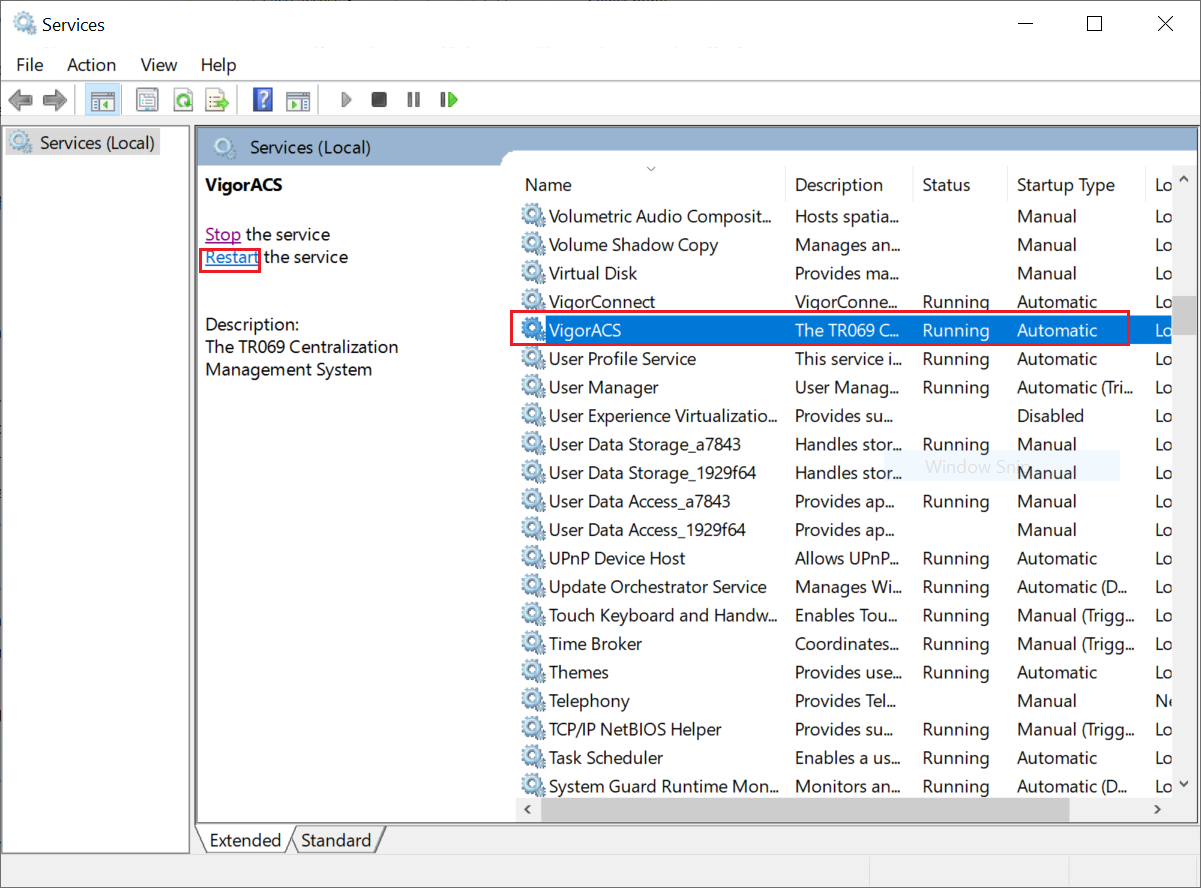

2. Restart the VigorACS service, and the web port will be changed.

Change web port on Linux

1. Change the port: Go to /usr/local/vigoracs/VigorACS/bin and use the editor(vi or vim) to open the httpport.txt file. Change the number in the file content to the HTTP port number which you'd like to use then save the file. And do the same operation for httpsport.txt to change the port number based on your requirement.

2. Run vigoracs.sh then type option 5 and 6 to restart the VigorACS service, and the web port will be changed.
