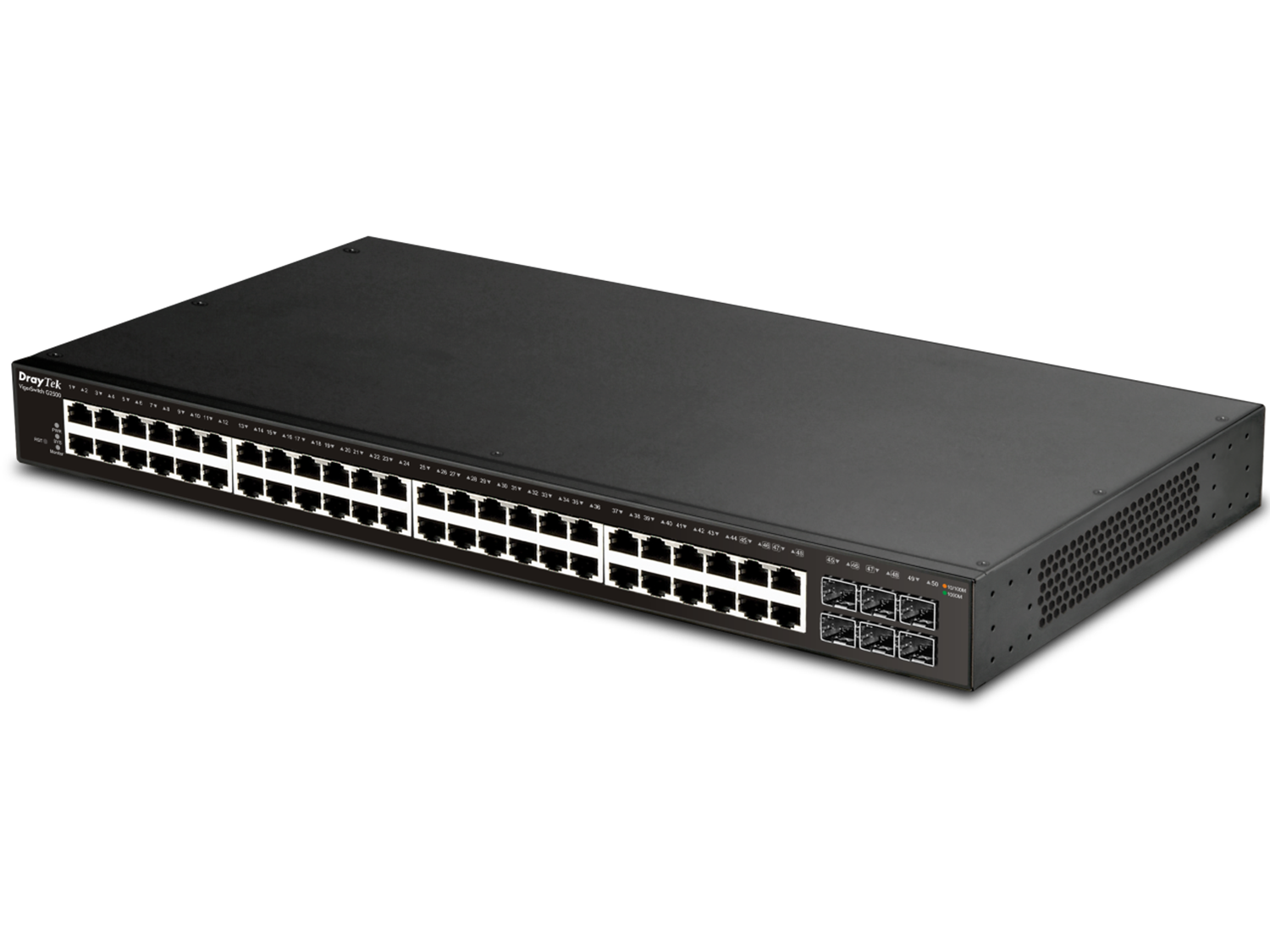

DrayTek VigorSwitch G2500 is a Layer 2 Managed Gigabit switch with high port density. It offers 50 ports, including 44x Gigabit Ethernet ports, 4x GbE/SFP combo ports, and 2x SFP fiber slot. The switch provides abundant of enterprise-level features to help businesses to improve network security and stability.
44x GbE
Gigabit Ethernet Ports
4x Combo
Gigabit Ethernet/SFP Combo
2x SFP100/1000M SFP Slot
100 Gbps
Switching Capacity
1Reset Button
2LED Indicator
344x Gigabit Ethernet
44x Gigabit Ethernet/SFP Combo
52x SFP Slot
6Console Port
7Power Socket
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
VigorSwitch G2500 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
VigorSwitch G2500 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo
Multiple Admin accounts with two levels of administrator privilege.
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
Compliant with IEEE 802.3az to reduce power consumption.
VigorSwitch keeps an eye on the environment and notify the administrator of any IP conflicts.
For a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host.
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.
Images filmed by IP cameras can be viewed directly on VigorSwitch.
Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.
Locating Not-Responding Cameras Made Easy
It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.
To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.
With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.
VigorSwitch G2500
Rack Mount Kit
Console Cable
Power Cord
Quick Start GuideThe throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
Interface | |
| LAN Port | 44x 10/100/1000Base-T Ethernet, RJ-45
4x Gigabit Ethernet, RJ-45/SFP Combo 2x 100/1000M SFP Slot |
| Console Port | 1x Gigabit Ethernet, RJ-45 |
| Button | 1x Factory Reset Button |
Capacity | |
| Buffer Size | 12 Mbit |
| Switching Capacity | 100 Gbps |
| Forwarding Rate | 74.4 Mpps (64 bytes) |
| MAC Address Table | 16k |
| Jumbo Frame | Up to 12KB |
Networking Standards | |
| IP Version | IPv4, IPv6 |
| Ethernet Standards | 802.3 10Base-T
802.3u 100Base-T 802.3ab 1000Base-T 802.3x Flow Control 802.3 Auto-Negotiation 802.1q Tag-based VLAN 802.1p Class of Service 802.1d STP 802.1w RSTP 802.1s MSTP 802.3ad LACP 802.1x Port Access Control 802.1AB LLDP 802.3az EEE |
VLAN | |
| Max.Number of VLAN | 256 |
| VLAN Type | 802.1q Tag-based
MAC-based 802.1v Protocol-Based Management VLAN Voice VLAN Surveillance VLAN |
| Port Isolation (Protected Port) | |
| GVRP | |
| Q-in-Q | Basic |
ONVIF Surveillance | |
| Discovery | |
| Surveillance Topology | |
| Real-Time Video Streaming | |
| ONVIF Device Maintenance | Device Info, Reset Factory Default, Time Settings, Reboot |
QoS | |
| Number of QoS Queues | 8 |
| Queue Scheduling | SPQ, WRR |
| CoS (Class of Service) | 802.1p CoS, DSCP, CoS-DSCP, IP Precedence |
| Rate Limit & Shaping | |
Security | |
| Access Control List | MAC, IPv4, IPv6 |
| Storm Control | Broadcast, Unknown Multicast, Unknown Unicast |
| DoS Defense | |
| 802.1x Port Access Control | |
| IP Source Guard | |
| IP Conflict Detection | |
| IP Conflict Prevention | |
| Loop Protection | |
| Dynamic ARP Inspection | |
| DHCP Snooping with Option 82 | |
Link Aggregation | |
| Max. Number of Group | 16 |
| Max. Number of Member in Each Group | 8 |
| Type | Static, LACP |
| Traffic Load Balancing | MAC Address, IP/MAC Address |
Multicast | |
| IGMP Snooping | v2, v3 (BISS) |
| IGMP Querier | v2, v3 (BISS) |
| MLD Snooping | v1, v2 |
| Max. Number of Multicast Group | 256 |
| Group Throttling | |
| Group Filtering | |
| MVR (Multicast VLAN Registration) | |
Management | |
| Web Interface | HTTP, HTTPS |
| Command Line Interface | Telnet, SSH |
| OpenVPN Client | Certificate-based authentication |
| User Authentication | Local Database, RADIUS, TACACS+ |
| SNMP | v1, v2c, v3 |
| RMON Group | 1, 2, 3, 9 |
| LLDP | LLDP-MED, Media Endpoint Discovery Extension |
| Mail Alert | Port Status, Port Speed, System Restart, IP Conflict |
| Syslog | |
| 2-Level Admin Privilege | |
| Multiple Admin Accounts | |
| Managed by VigorRouter SWM | |
| Managed by VigorConnect | |
| Managed by VigorACS 2 | |
| Config File Export/Import | |
| Dual Image | |
| SNTP (Simple Network Time Protocol) | |
| Diagnostics Tools | Port Mirroring, Ping, Cable Test |
Physical | |
| 19-inch Rack Mountable | Mouting Kit Included |
| Max. Power Consumption | 31.4 watts |
| Dimension | 441mm x 270mm x 45mm |
| Weight | 3.82 kg |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -40 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
| Certificate |  |
All specifications are subject to change without notice.
