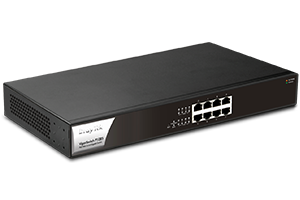

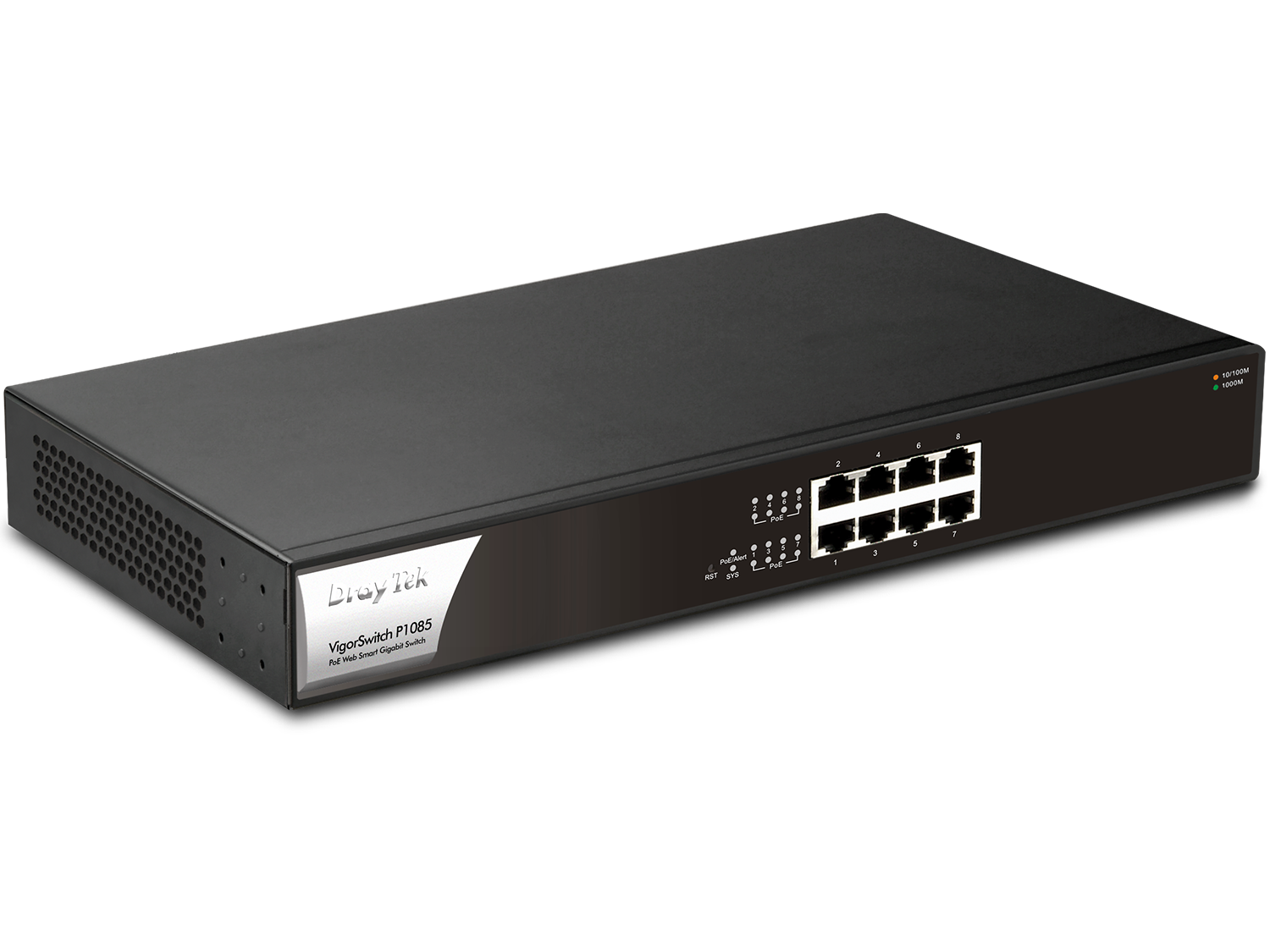

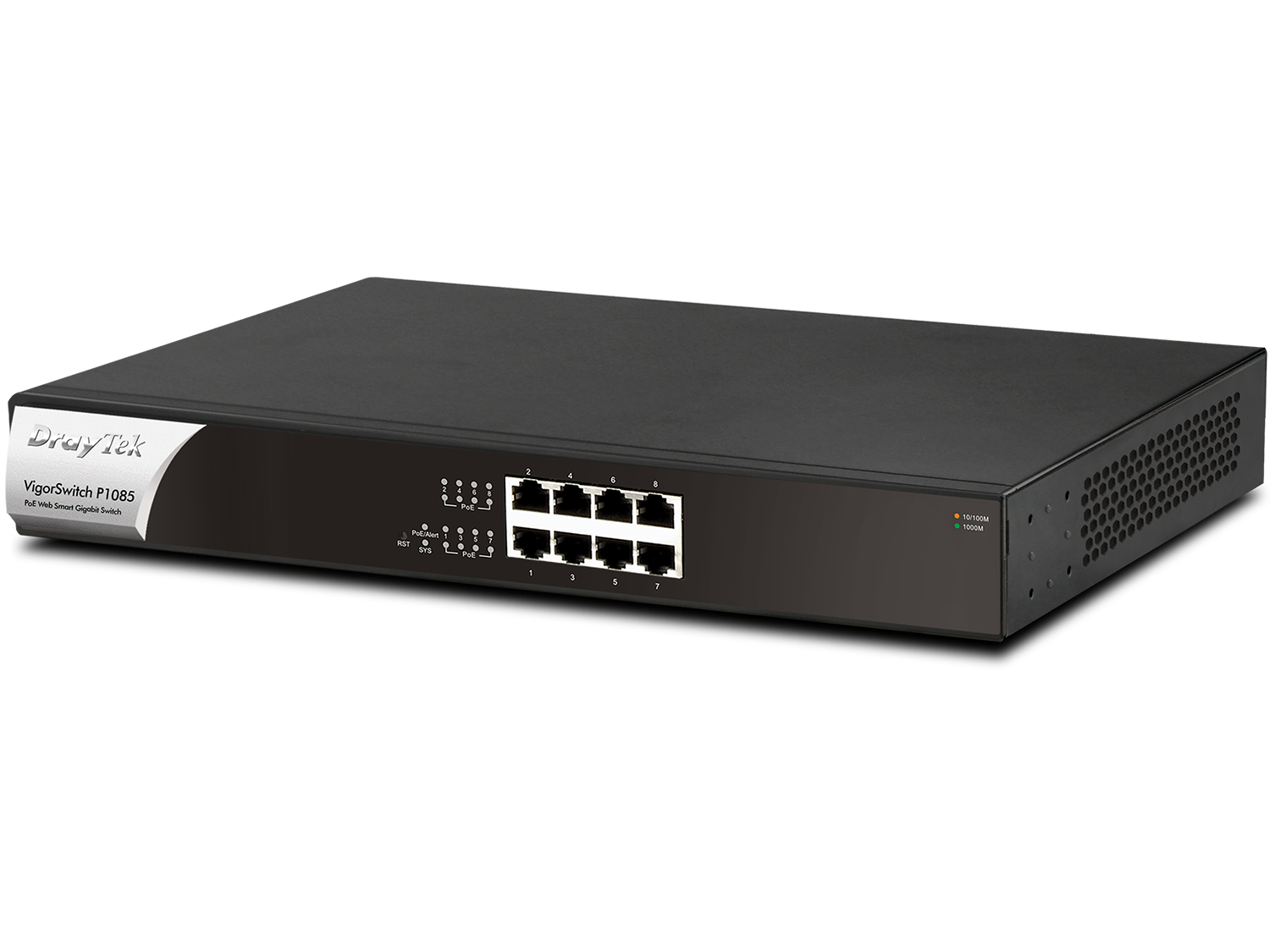

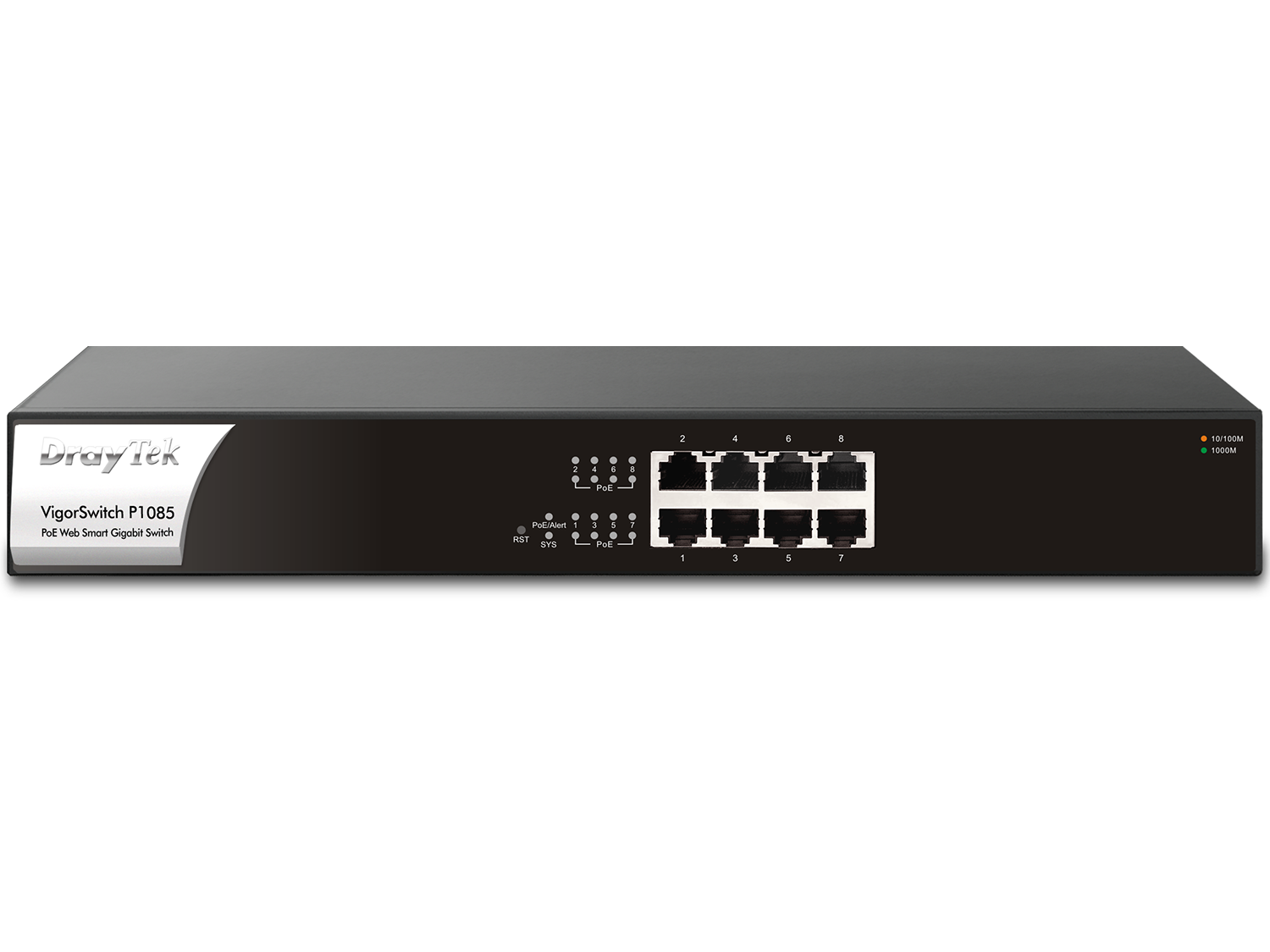

DrayTek VigorSwitch P1085 is a compact Web Smart Gigabit PoE switch. It has 8x Gigabit Ethernet PoE/PoE+ ports with a PoE power budget of 140 watts. The model offers enterprise-level features to help businesses to improve network security and stability.
8x PoE GbE
PoE/PoE+ Gigabit Ethernet, RJ-45
140 watts
of PoE Power Budget
16 Gbps
Switching Capacity
11.9 Mpps Forwarding Rate

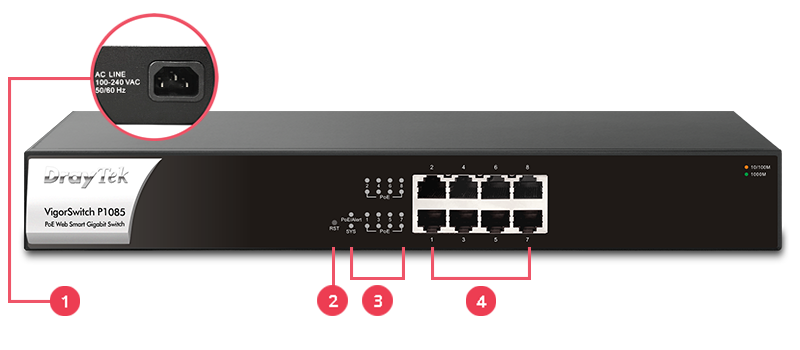

1Power Socket
2Reset Button
3LED Indicator
48x PoE/PoE+ Gigabit Ethernet
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.
Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
Multiple Admin accounts with two levels of administrator privilege.
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
Compliant with IEEE 802.3az to reduce power consumption.
VigorSwitch keeps an eye on the environment and notify the administrator of any IP conflicts.
For a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host.
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.
Images filmed by IP cameras can be viewed directly on VigorSwitch.
Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.
Locating Not-Responding Cameras Made Easy
It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.
To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.
With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.
VVigorSwitch P1085
Rack Mount Kit (brackets)
Power Cord
Quick Start GuideThe throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
Interface | |
| LAN Port | 8x 10/100/1000 Mbps Gigabit Ethernet, RJ-45 |
| Factory Reset Button | 1 |
PoE | |
| PoE Capable Ports | 8 |
| PoE Standards | PoE/PoE+(802.3af/802.3at), Type mode A |
| PoE Power Budget | 140 watts |
| Power Limit | |
| Scheduled On/Off | |
| Power Cycle on Port | Manual, Ping Watchdog |
Capacity | |
| Buffer Size | 4.1 Mbit |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.9 Mpps (64 bytes) |
| MAC Address Table | 8k |
| Jumbo Frame | Up to 9KB |
Networking Standards | |
| IP Version | IPv4, IPv6 |
| Ethernet Standards | 802.3af PoE
802.3at PoE+ 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.3x Flow Control 802.3 Auto-Negotiation 802.1q Tag-based VLAN 802.1p Class of Service 802.1d STP 802.1w RSTP 802.3ad LACP 802.1x Port Access Control 802.1AB LLDP 802.3az EEE |
VLAN | |
| Max.Number of VLAN | 256 |
| VLAN Type | 802.1q Tag-based MAC-based Management VLAN Voice VLAN Surveillance VLAN |
| Port Isolation | |
ONVIF Surveillance | |
| Discovery | |
| Surveillance Topology | |
| Real-Time Video Streaming | |
| ONVIF Device Maintenance | Device Info, Reset Factory Default, Time Settings, Reboot |
QoS | |
| Number of QoS Queues | 8 |
| Queue Scheduling | SPQ, WRR |
| CoS (Class of Service) | 802.1p CoS, DSCP, CoS-DSCP, IP Precedence |
| Rate Limit/Shaping | |
Security | |
| Access Control List | MAC, IPv4, IPv6 |
| Storm Control | Broadcast, Unknown Multicast, Unknown Unicast |
| DoS Defense | |
| IP Source Guard | |
| IP Conflict Detection | |
| IP Conflict Prevention | |
| Loop Protection | |
Link Aggregation | |
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | Static, LACP |
| Traffic Load Balancing | MAC Address, IP/MAC Address |
Multicast | |
| IGMP Snooping | v2, v3 (BISS) |
| IGMP Querier | |
Management | |
| Web Interface | HTTP, HTTPS |
| Command Line Interface | Telnet, SSH v2 |
| OpenVPN Client | Certificate-based authentication |
| SNMP | v1, v2c, v3 |
| Mail Alert | Port Status, Port Speed, System Restart, IP Conflict |
| LLDP | |
| Syslog | |
| 2-Level Admin Privilege | |
| Multiple Admin Accounts | |
| Managed by VigorRouter SWM | |
| Managed by VigorConnect | |
| Managed by VigorACS 2 | |
| Config File Export/Import | |
| SNTP (Simple Network Time Protocol) | |
| Diagnostics Tools | Port Mirroring, Ping, Cable Test |
Physical | |
| 19-inch Rack Mountable | Mouting Kit Included |
| Power Input | AC 100-240V @ 2.6A |
| Max. Power Consumption | 162 watts |
| Dimension | 330mm x 230mm x 44mm |
| Weight | 2.27 kg (5 lb) |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
| Certificate |   |
All specifications are subject to change without notice.
The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
